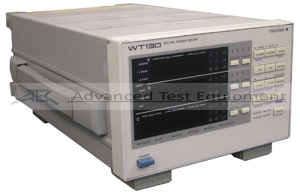

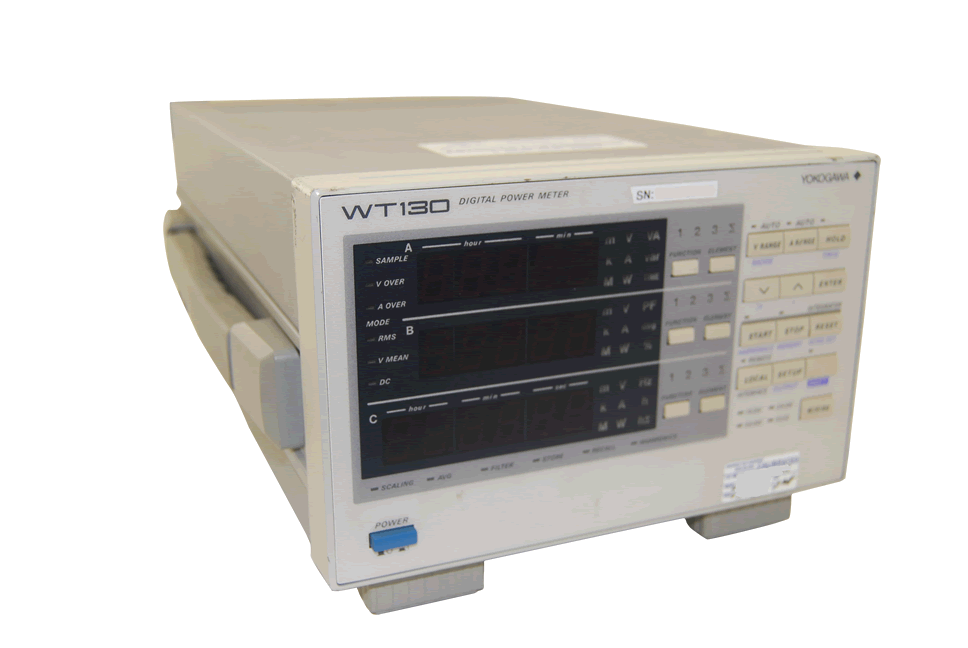

Yokogawa WT130 Digital Power Meter

Yokogawa WT130 Digital Power Meter
Enlarge Image
Yokogawa WT130 Digital Power Meter Yokogawa WT130 Digital Power Meter Yokogawa WT130 Digital Power Meter
Yokogawa WT130
Request Quote Print Page
Datasheet
The WT130 can measure DC, and so half-wave rectified signals containing DC components or intermittent signals can be measured without considering the input signals. The ultra-compact case design allows two models to be rack-mounted side by side. And the low weight of just 3 kg. The WT130 makes light work when using the devices in the field. The new large LED display also greatly improves readability.


Features:

  • Fundamental accuracy of 0.25%
  • DC measurement, 10 Hz to 50 kHz frequency band
  • Compact design (half-rack size)
  • Built-in harmonic analysis function (optional)
  • Comparator function (optional) for GO/NO-GO judgment
  • User calibration (by remote communication or manually)
  • Sensor input(optional) for use with external current clamps and shunts
