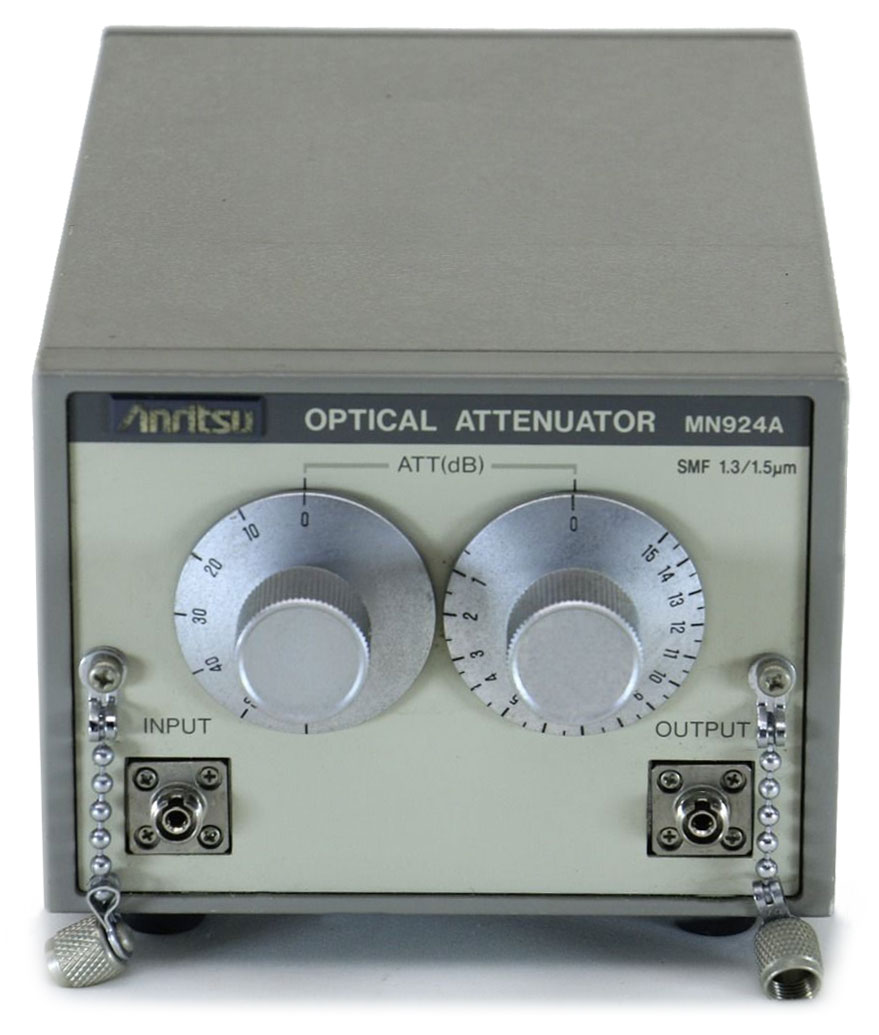

Anritsu MN924A Optical Attenuator
Discontinued
The Anritsu MN924A Optical Attenuator is Discontinued
The Anritsu MN924A is a high-precision optical attenuator designed for use with the single-mode optical fibers. A combined step attenuator and continuous attenuator permit highly accurate attenuation adjustment. The Anristu MN924A optical attenuator has super PC-type optical connectors, so that internally reflected light is thoroughly surpresed. The Anritus MN924A is precisely constructed for single-mode fiber use and can be used as a accurate 65 dB variable attenuator combining step-variable and continuously-variable attenuators. This optical attenuator is suitable for 1.3 and 1.55 µm wavelengths and features minimal light reflection at the input/output connectors.
| Wavelength | 1.3 µm, 1.55 µm (1300 nm, 1550 nm) |
| Max. Attenuation | 65 dB |
| Configuration | 10 dB x 5, continuously variable 0 to 15 dB |
| Insertion Loss | < = 3.5 dB |
| Input/output connector | FC type |
| Compatible Fiber | SM (10/125 µm) single mode |
SKU: ANRI-MN924A
