EM Test VCS 500N8.5 8kV Combo Wave/Surge Generator

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent EM Test VCS 500N8.5 8kV Combo Wave/Surge Generator
Enlarge Image

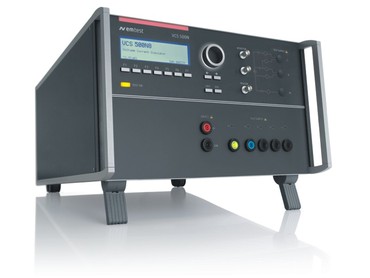

EM Test VCS 500N8.5
Request Quote Print Page
VCS 500N8.5 Datasheet
Surge pulses occur due to direct or indirect lightning strokes to an external (outdoor) circuit. This leads to currents or electromagnetic fields causing high voltage or current transients. Another source for surge pulses are switching transients originating from switching disturbances and systems faults.

Due to the characteristic of the phenomenon nearly every electrical and electronical device may suffer from such lightning events which justifies the necessity of surge tests being widely performed. The EM Test VCS 500N8.5 8kV Combo Wave/Surge Generator offers a integrated coupling/decoupling network either single phase or three-phase with a nominal current of 16A per phase. In case higher current is required its capability can be extended by an external CDN to achieve nominal currents of 100A and more per phase.
  • iec.control 1: Remote control and documentation software, including standard test routines and reporting capabilities.
  • IMN 2: Impedance matching adapter to match direkct output to 2ohm source impedance
EM Test VCS 500N8.5 Features
  • Built-in 3-phase coupler
  • Surge voltage up to 8kV
  • Surge current up to 4kA
  • Voltage/current monitors
  • Built-in CDN 1-phase or 3-phase up to 3 x 690V and 32A
  • Interlock
  • Warning lamp control
EM Test VCS 500N8.5 Specs
  • Output
    • Direct: Via HV connectors for external coupling networks (Zi = 2ohm with optional adapter IMN 2)
    • Coupling mode: Line to line with 2ohm; Line(s) to PE with 12ohm
    • 3 x 440VAC / 32A; 50/60Hz
    • DC: 250V/20A
  • Voltage (o.c.): 250V - 8,000V ± 10%
  • Front time: 1.2μs ± 30%
  • Time to half value: 50μs ± 20%
  • Current (s.c.): max. 4,000A ± 10%
  • Front time: 8μs ± 20%
  • Time to half value: 20μs ± 20%
  • Polarity: Positive/negative/alternating
  • Event counter: 1 - 30,000 or endless
