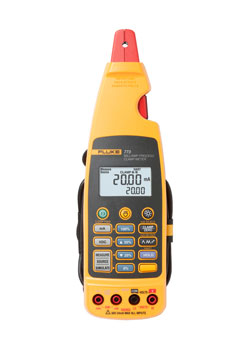

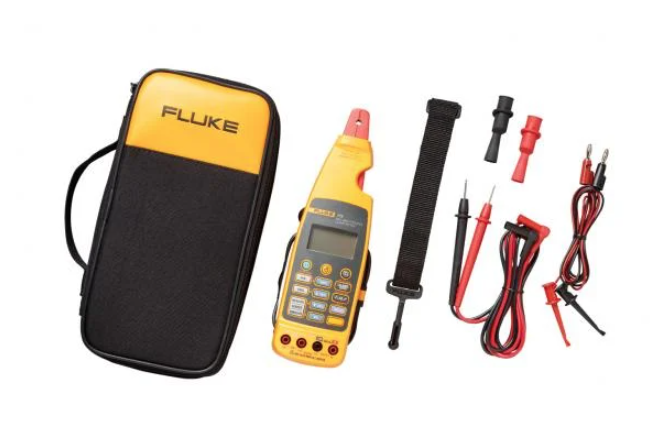

The Fluke 773 Milliamp Process Clamp Meter is capable of measuring 4 o 20 mA signals without breaking the loop. The Fluke 773 also features DC voltage measurement to verify 24 power supplies or voltage I/O signals. The 773 model has a <0.12 mA influence on the earth's field while offering 12 hours of operating hours at a 12 mA source into 500 ohms. The Fluke 773 Milliamp Process Clamp Meter has an IP 40 protection rating and meets the application requirements for the EN61326-1 standard.
This oscilloscope probe is an accessory and is only available to rent with an oscilloscope.
See All Oscilloscopes
Features
- Advanced loop troubleshooting
- Work smarter with the 778 mA Clamp Meter
- Save time and money by measuring output signals without shutting down the system
- Ideal for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) found in process plants
- Source DC voltage to test input devices that accept a 1 to 5 volt or 0 to 10 volt signal
- Automatically change the voltage output for remote testing
- Best in class accuracy of 0.2%
- Delivers 0.01 mA resolution and sensitivity
Specifications
| Function |
mA measurement, mA source, mA simulate, voltage source, voltage measure |
| mA measurement |
Resolution: 0 to 20.99 mA (0.2% + 5 counts accuracy)
Range: 21 mA to 100 mA (1% + 5 counts accuracy) |
| mA source |
0 to 24.00 mA |
| mA simulate |
0 to 24.00 mA |
| Voltage source |
0 to 10.00 V DC |
| Voltage measure |
0 to 30.00 V DC |
| Operating temperature |
-10 °C to 50 ºC |
| IP rating |
IP 40 |
| Influence of earth’s field |
<0.12 mA |
| Working hours |
12 hours @ 12 mA source into 500 ohms |
Dimensions
(H x W x L) |
41.3 mm x 76 mm x 248 mm (1.625 in x 3 in x 9.75 in) |
