Haefely ECOMPACT4 Compact Transient Immunity Tester
Discontinued

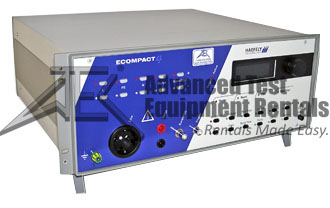

The Haefely ECOMPACT4 Compact Transient Immunity Tester is a ultra-compact immunity tester that performs all the most commonly used transient immunity tests, including Surge, EFT, Dips/Interrupts and AC/Surge Magnetic Field. The simplified user interface on the ECOMPACT provides quick selection of tests and test levels, and even lets you change test parameters "on the fly" while running a test. The included "EMV-Check" software is compatible with all latest windows versions, and allows full automation of the test routine as well as data gathering and test report generation.Whether you test to the IEC 61000 series "CE Mark" standards, the IEC 60601 Medical Device standards, or any number of telecom and product specific standards, the Haefely ECOMPACT4 tester is your one stop test station for everything from precompliance to full compliance to product development testing. Use it as a stand-alone tester, or in conjunction with Haefely's premium arsenal of specialty EMC immunity equipment.
| System Mainframe | |
| Control Power | 100/115/230V 50/60Hz |
| Memory Storage | 20 positions |
| Communication Interface | RS232, RS485 |
| IEC / EN 61000-4-4 Edition 2 Electrical Fast Transient | |
| Output Voltage | 0.2 - 4.2 kV |
| Polarity | Positive and Negative |
| Output Impedance | 50 ohms |
| Rise Time | 5 ns +/- 30% |
| Impulse Duration | 50 ns +/- 30% (50 ohms) 50 ns -15 +100 ns (1 k ohms) |
| Spike Frequency | 0.5 - 100 kHz |
| Burst Duration | 0.75 - 130 ms |
| Burst Period | 10 - 2400 ms |
| Spikes per Second | Max. 2500 at U < 3 kV Max. 1250 at U = 3 kV to 4.2 kV |
| Integrated Single Phase Coupling / Decoupling Network | 33 nF coupling capacitance 1.5 mH decoupling inductance 230V AC/60V DC, 16A |
| IEC / EN 61000-4-5 Surge Combination Wave | |
| Output Voltage | 0.2 - 4.2 kV |
| Voltage Rise Time | 1.2 us +/- 30% |
| Voltage Duration | 50 us +/- 20% |
| Polarity | Positive and Negative |
| Output Impedance | 2 ohms |
| Synchronization | 0 - 359 deg, 1 deg resolution 16.67 / 40 / 50 / 60 Hz |
| Output Current | 0.1 - 2.1 kA |
| Current Rise Time | 8 us +/- 20% |
| Current Duration | 20 us +/- 20% |
| Repetition Rate | 10s - 999s |
| Integrated Single Phase Coupling / Decoupling Network | 18uF / 0 R for differential mode 9 uF / 10 R for common mode 1.5mH decoupling inductance 230V AV / 60V DC, 16A |
| IEC / EN 61000-4-11 Edition 1 & 2 and IEC / EN 61000-4-29 Dips and Interrupts | |
| Max. Voltage | 250V AC/DC |
| Max. Current | 16A AC/DC |
| Dip Levels | 0%, 40%, 70%, 80% |
| Interrupt Time | 0.1 ms - 998 s |
| Repetition Time | 0.2 ms - 999 s |
| Phase Synch. | 0 - 359 degree asynchronous 16 / 40 / 50 / 60 Hz |
- Up to 6 complete EMC immunity standards in a single test station, including:
- IEC / EN 61000-4-4 Ed. 2 Electrical Fast Transient
- IEC / EN 61000-4-5 Surge Combination Wave
- IEC / EN 61000-4-8 AC Magnetic Field
- IEC / EN 61000-4-9 Surge Magnetic Field
- IEC / EN 61000-4-11 Ed. 1 & Ed. 2 AC D& Interrupts
- IEC / EN 61000-4-29 DC Dips
- According to the latest editions of: IEC / EN 61004-4 & IEC / EN6100-4-11
- Integrated Single Phase Coupling / Decoupling network
- Optional automated 1-phase 16A Coupling / Decoupling Network for Surge & EFT (please consult your sales representative for availability)
- Test routine Storage and Recall
- Windows 98/00/XP Software Included
- Multi-purpose - All basic immunity tests combined in a single economical package for maximum flexibility
- Quick and Simple - One touch operation and simple automation of test routines streamlines the test procedure
- Flexible - Change test parameters on the fly for simple compliance testing or rigorous development work
- Test Reporting - Included Windows software automatically documents test parameters and results
- Reliable and Economical - World-renowned Haefely quality, reliability, service and support in a budget friendly package
Full Compliance and Pre-Compliance testing to a wide variety of transient immunity standards:
- IEC 61000-4-X "CE Mark" Basic Standards
- IEC 60601 for Medical Equipment
- Telcordia GR1089 IEC, ANSI, ITU, UL Product Standards
SKU: HAEF-ECOMPACT4
