Keysight 16047A Test Fixture

  Tech Support
(800) 404-2832
ATEC Assurance With Every

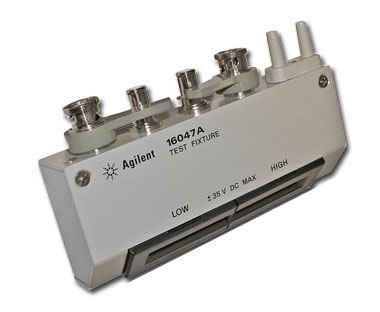

The Keysight 16047A (formerly Agilent Technologies), test fixture is designed for impedance evaluation of axial/radial lead type devices. The 16047A employs Kelvin contacts which realize a wide impedance measurement range. The contact tip can be changed according to the device shape.

For Use With: 4263B, 4268A, 4279A, 4284A, 4285A, 4288A, 4294A, 4192A, 4194A, 4263A, 4278A

Terminal Connector: 4-Terminal Pair, BNC
DUT Connection: 4-Terminal
Frequency: DC to 13 MHz
Maximum Voltage: ±40 V peak max (AC+DC)
Operating Temperature: 0°C to 55°C

Keysight 16047A Test Fixture units were previously manufactured by Agilent Technologies.
