Keysight 16334A Tweezer Test Fixture

16334A Tweezer Contact Test Fixture
Enlarge Image
Request Quote Print Page
Manual

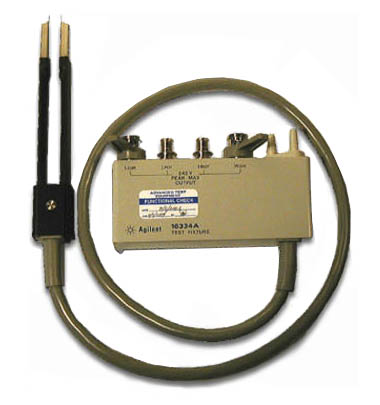

Description: This test feature is designed for impedance evaluations of SMD. The minimum SMD size that this fixture is adapted to evaluate is 1.6(L) x 0.8(W) [mm]. The tweezers contacts on this fixture makes it easy to hold the DUT.


Applicable Instruments: 4263B, 4268A, 4279A, 4284A, 4285A, 4288A, 4294A, 4192A, 4194A, 4263A, 4278A



Features:

  • Frequency: DC to 15 MHz
  • Maximum Voltage: ±42 V peak max (AC+DC)
  • Operating Temperature: 0°C to 55°C
  • DUT Size: 10mm (width) or less
