Keysight 3499A 5-Slot Switch Control Mainframe

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
HP/Agilent 3499A 5-Slot Switch/Control Mainframe
Enlarge Image

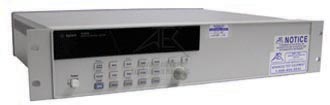

Keysight 3499A
Request Quote Print Page
Manual 3499A Datasheet Accessory Kit

Ideal for mid-sized systems, the Keysight 3499A 5-Slot Switch/Control Mainframe can accommodate up to five plug-in modules, routing up to 200 channels in a test system. With various switch modules, it can scan at rates up to 350 channels per second, or open/close 200 channels in less than 0.1 second. The 3499A is compact, requiring only 2U height in a full rack width mainframe unit.

The Keysight 3499A 5-Slot Switch/Control Mainframe has a concise user interface that is extremely useful for manual operation on the manufacturing floor or in desktop applications. High-performance switching modules, multi-function modules, built-in relay cycle counters and easy interconnections all contribute to provide a switching solution you can trust.

Keysight 3499A Features
  • Five module slots
  • Intuitive, self-guiding front panel interface
  • 2U rack height, full rack width
  • GPIB and RS-232 interfaces
  • Built-in Digital I/O
