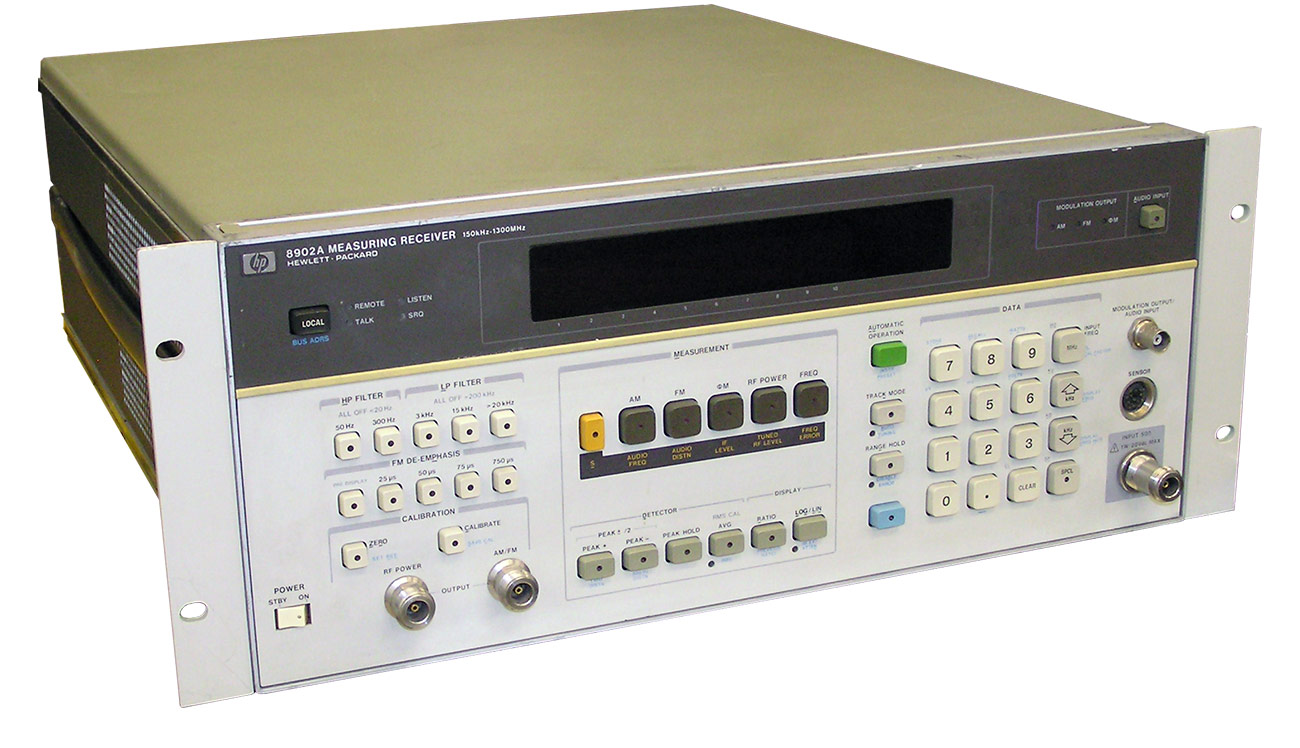

HP/Agilent 8902A Measuring Receiver, 150 KHz - 1.3 GHz
Enlarge Image
Keysight 8902A
Request Quote Print Page
Manual 8902A Datasheet
The Keysight 8902A measuring receiver delivers the accuracy and resolution of a high performance power meter at frequencies from 150 kHz to 1.3 GHz (50 MHz to 26.5 GHz with the 11793A microwave converter) and levels from +30 dBm to -127 dBm. It accurately measures AM, FM and M, including residuals and incidentals, with a single keystroke. The 8902A measuring receiver, with the Agilent 11793A, counts RF signals to 26.5 GHz with 10 Hz resolution and excellent long-term frequency stability. The 8902A Measuring Receiver 150 KHz - 1.3 GHz with Option 050 offers increased power measurement accuracy. This option specifies Tuned RF Level on the 8902A measuring receiver to an accuracy of ±(0.015 dB + 0.005 dB/10 dB step).
Keysight 8902A Specs
RF Power Digital power meter accuracy
Tuned RF Level 0 to -127 dBm dynamic range
Carrier noise AM and phase noise measurements to -140 dBc/Hz
AM and FM 1% accuracy
RF Frequency 1 Hz resolution
Audio Level, frequency, and distortion
