Pacific Power 110H AC Power Source
Enlarge Image

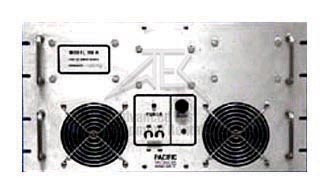

Pacific Power 110H
Request Quote Print Page
110H Datasheet

The Pacific Power 110H AC Power Source is a solid-state linear power amplifier designed to serve as a rugged AC Power Source to 1000 VA at the popular power frequencies. It is designed to operate from line power of 110 or 220 VRMS, 50 - 60 Hz.

The standard unit is equipped with a fixed internal oscillator pre-set to the desired frequency over the range of 47 - 500 Hz. Amplitude is continuously variable, 0 - 125 VRMS, and may be locked at a selected value.

The 110H is fully protected against accidental shorts or overload, and against excessive internal temperature. It is designed for economy and reliability in fixed requirement applications.

Pacific Power 110H Specs
Output Voltage 0 - 125 VRMS min. range
Output Current 0 - 8 amps
Internal Oscillator 400 Hz, pre-set
Power Factor 0.7 Inductive or Capacitive
Dimensions 19" W x 17" D x 10½" H
Weight 80 lbs
