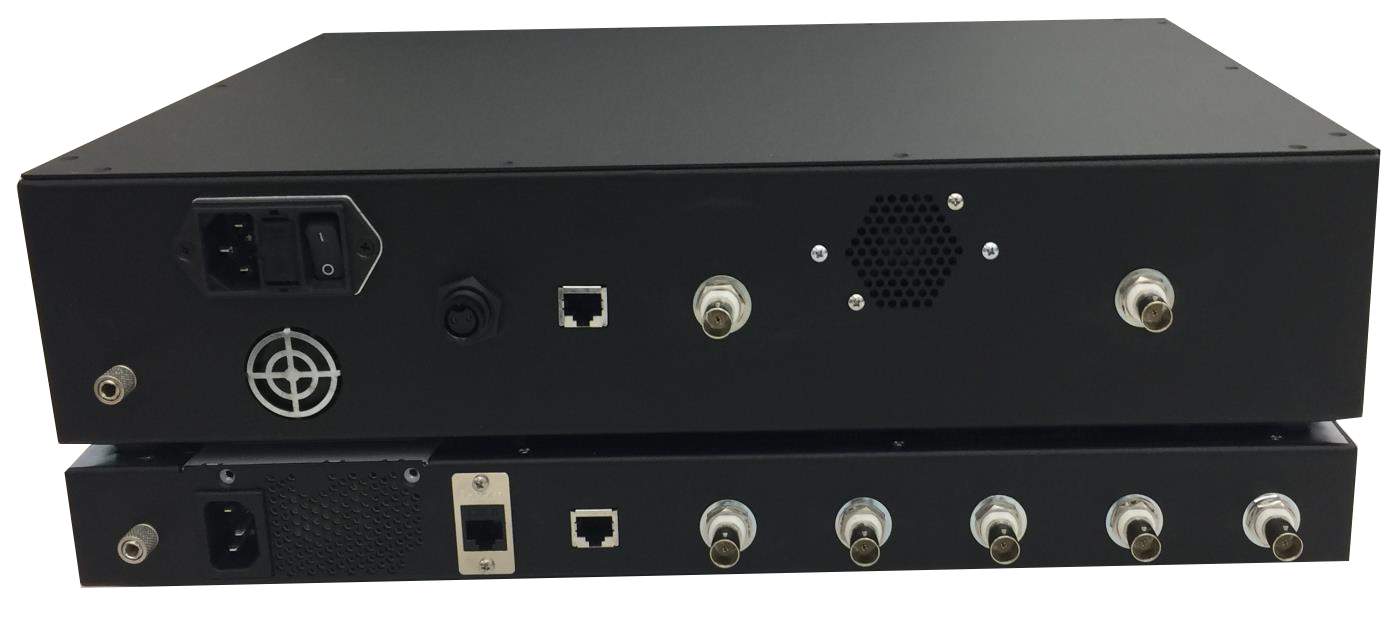

Spectral Dynamics SD Felix 4540M4 PIND System

Tech Support
(800) 404-2832

With Every
Rental

Worldwide
Delivery

Larger

Categories

Particle Impact Noise Detection (PIND)

Documents

Datasheet

The Spectral Dynamics SD Felix is a particle impact noise detector that tests for loose particles using reliable internal electronic components such as relays, transistors, hybrids, integrated circuits, and switch particles. The SD Felix combines sensors like ultrasonic (155kHz) that monitor shaker motion with feedback control to correct for changes that happen in test conditions. The Spectral Dynamics SD Felix uses computer technology that controls motion and allows technicians to program motion including shock and vibration at precise levels to simulate a whole range of testing needs. The Spectral SD Felix uses four unique channels for data collection and all four use the same clock to digitize the data at 2.5MSamples per second. The SD Felix’s four unique channels include a high-speed acoustic channel, vibration channel, shock channel, and digital output channel. The SD Felix’s unique features are great for testing electronic components for cardiac pacemakers, spacecraft, or undersea cables.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Vibration
Frequency range	25 - 250Hz, sinusoidal
Other vibration modes	Automatic stepped frequency from 40 - 250Hz
Low frequency program	Maximum amplitude protection varies with frequency
Frequency resolution	1 Hz
Time	0.1 to 25.5 second per program
Time program resolution	0.1 Second
Amplitude	0.1 to 25.50 'G' peak, display on screen
Amplitude program resolution	0.1 'G'
Repeatability	0.5 'G' peak for levels above 5g, with feedback control 1.0 'G' peak for levels above 5g, with feedback Control
Maximum D.U.T. test weight without calibration changes	Maximum 400 grams over the entire range Maximum 500 grams at 60 Hz
Shock
Method	Feedback control of shaker armature Adapts shock to D.U.T. weight
Amplitude	Programmable 100 - 2500'G'
Program resolution	10'G'
Repeatability	Within 50 'G'
Pulse width	<100 microsecond at 50% amplitude 90-150 microsecond at 10% amplitude
Shock delay	Settling time after shock programmable
Maximum D.U.T. test weight without calibration changes	Amplitude falls slightly with load Maximum capacity 400 Grams with 1000 g amplitude (May require Programmed value to be increased)
Output
Acceleration display	LCD plot
Frequency display	Displayed on LCD
Threshold crossing indicator	LCD has indicator
Shock level display	LCD plot
Audio	4 Watt Internal speaker
