Tektronix TDS7404B 4 Channel 4 GHz 20 GS/s Oscilloscope

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Tektronix TDS7404B 4 Channel 4 GHz 20 GS/s Oscilloscope

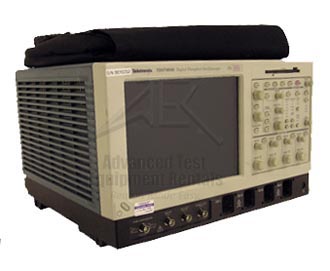

Enlarge Image
Tektronix Test Equipment TDS7404B
Request Quote Print Page
TDS7404B Datasheet

The Tektronix TDS7404B 4 GHz Oscilloscope is a high performance solution for verifying, debugging, and characterizing sophisticated electronic designs. The series features exceptional signal acquisition performance, operational simplicity, and open connectivity to the design environment.

Tektronix Test Equipment TDS7404B Features
  • Separate Digitizers: Ensure accurate timing measurements with separate digitizers for each channel. Acquisition on multiple channels is always concurrent. The digitizers can also be combined to yield a higher sample rate on a single channel.
  • Fast Acquisition: Acquires up to 400,000 waveforms per second.
  • Long Record Lengths: Choose record lengths from 500 points up to 500,000 points per channel (tp to 2,000,000 points on a single channel).
Tektronix Test Equipment TDS7404B Specs
Channels 4
Bandwidth 4 GHz
Max. Sample Rate 20 GS/s
Input Coupling DC 50 ohms and GND
Input Impedance, DC coupled 50 ohms ±2.5% at 25°C
VSWR, typical 1.5 for fin <1 GHz
1.7 for fin <2.5 GHz
2.0 for fin <4 GHz
Sensitivity Range 2 mV/div to 1 V/division, in a 1-2-5 sequence
