Tektronix TG2000 Multiformat Test Signal Generator

Rent Tektronix TG2000 Multiformat Test Signal Generator

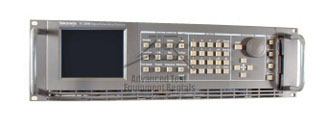

Enlarge Image
Tektronix Test Equipment TG2000
Request Quote Print Page
Manual Datasheet
The Tektronix TG2000 Multiformat Test Signal Generator is a multiformat, analog and digital, precision signal generation platform. Designed for the most demanding test applications, the TG2000 provides reference-quality test signals, stressing functions in both the analog and digital domains and the flexibility to address user-defined testing requirements. Comprehensive test signal libraries are supplied in all formats and are supplemented by a Windows-based test signal development program. The modular architecture, RAM-based test signal generators, and programmable system clocks ensure the TG2000 will meet future needs as well as today’s requirements.


Features:

  • Multiformat Analog and Digital Test Signal Generation
  • Reference Generator Performance Level
  • Conforms to Analog, Digital, Video, and Audio Industry Standards
  • Modular Expandable Platform
  • Designed for the Requirements of Today and the Future
  • Fully Supports VM700T Video Measurement Routines
  • RAM-based Test Signal Generators with Nonvolatile Storage
  • Test Signal Libraries for All Formats
  • Variable Analog and Digital Video Parameters

Specifications:

  • Mainframe
    • Black-burst Output –
      • Standards Conformance: EBU N14, SMPTE RP 154.
      • Frequency:
        • NTSC or PAL FSC.
        • Long-term stability: ≤1 ppm per year drift.

Applications:

  • Research and Development
  • Studio Reference Generator
  • Manufacturing Test
  • Equipment Design Maintenance
  • Postproduction and Broadcast Facilities
  • Automated Manufacturing Test
