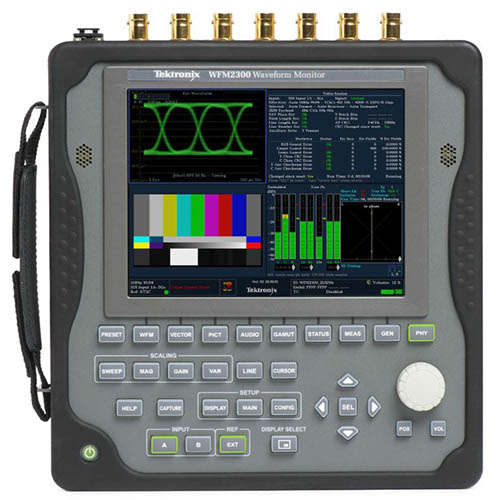

Tektronix WFM2300A Portable Waveform Monitor
Enlarge Image
Tektronix Test Equipment WFM2300A
Request Quote Print Page
WFM2300A Datasheet
The Tektronix WFM2300A Portable Waveform Monitor is a video and audio troubleshooting device utilized by broadcast technicians and engineers. Tektronix WFM2300A models feature SDI Eye pattern measurement, which produces eye amplitude, rise and fall time as well as a jitter waveform display, setting it apart from other WFM models. This waveform analysis device auto-detects 3G, HD, SD and Dual Link signals at an input level of 800 mVp-p, ±10%. The 3G/HD/SD color bar and pathological signal generator with genlock and moving-picture display render troubleshooting signal paths and equipment simple and efficient. Test signals for the adjustment of picture monitors are available as well. These units provide comprehensive monitoring of both visual and audio data, featuring up to 16 channels of audio monitoring and an option for HDMI signal monitoring. The interface of the Tektronix WFM2300A is sleek and accessible, a variety of monitoring displays delivering alarms, status reporting and error logging for 10,000 unique events.

Tektronix Test Equipment WFM2300A Features
  • SDI Eye pattern measurement including eye amplitude, rise/fall time and overshoot measurements as well as Tektronix jitter waveform display
  • Portable video/audio troubleshooting instrument
  • Operates with internal, rechargeable, and replaceable battery unit
  • Optical SDI input and output monitoring compliant to SMPTE297 (Option SFP)
  • HDMI signal monitoring (Option SFP-HDMI)
  • Coaxial cable simulation test loop for secure system installation
  • One SDI input and one MULTI input with multiformat, multistandard support
  • 3G/HD/SD color bar and pathological signal generator with genlock and moving picture
  • Up to 16 channel embedded AES/EBU audio: multichannel surround sound
ASI Adds support for ASI signal format
3G Adds support for 3G-SDI signal formats (Level A and Level B)
ADVP Adds out-of-service A/V delay measurement and propagation time measurement
DATA Adds Ancillary Data monitoring (including decoding of 708 and 608 Closed Captions, Teletext and OP47 Subtitles, AFD, and CGMS-A), and ANC Data Inspector
DBE Adds Dolby E analysis (including Metadata display, peak level indication, and Dolby E timing measurement) and Dolby E test signals (user-configurable parameters include: Tone (–18 dB, –20 dB and Multitone), Configuration (8x1 mono, 4x2 stereo, surround 5.1, 5.1+2 and 7.1), Metadata, and Dolby E audio frame start location)
LOUD Adds Audio Loudness monitoring capabilities including Loudness Meter
SFP 1 Add Optical input/output SDI module support (includes one SFP module); an SFP module is available for additional purchase (Tektronix part number 119-8280-00)
SFP-HDMI 1 Adds HDMI input module support (includes one SFP module), not HDCP compliant; an SFP module is available for additional purchase (Tektronix part number 119-8475-00)
Tektronix Test Equipment WFM2300A Applications
  • Field production setup including installation and maintenance troubleshooting
  • System check tool in distribution and broadcast
  • Portable engineering tool in manufacturing
