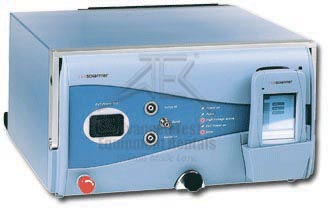

Teseq Modula ESD Test System

Tech Support
(800) 404-2832

With Every
Rental

Worldwide
Delivery

Larger

SKU: SCHA-MODULA-6150

This product has been discontinued.

View the Teseq NSG 3040 Transient Generator

The Schaffner Modula ESD Test System is a new product line for the simulation of electromagnetic interference effects. Immunity testing in conformity with international, national and in-house standards is handled with hitherto unimaginable efficiency and with greater operator convenience than ever before. Besides the generation of the classic interference pulses such as Burst and Surge as well as Power Quality simulations, further functions can also be readily incorporated in the system configuration. The Schaffner Modula represents a new yardstick for pulse generators and systems intended for investigating the immunity of products to electromagnetic interference.

Modula is a system concept that can appear in various guises depending on the intended use and the market needs. Industry-wide compatibility has been very much borne in mind in the development of Modula. The use of the well-known Interbus as the internal and external interface to every function unit, the Ethernet with the TCP/IP protocol for PC and network links, IEC compatible connectors on the equipment and EUT side, a software concept based on the Lab View standard, running under Windows, provides the greatest possible freedom and flexibility for expansion and for incorporation of available or planned components into the system in the test laboratory.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Specifications

MODULA 6000 Mainframe
Mainframe	Table top unit with rack mounting option - Handles in front and back
Instrument Power	85 - 265 VAC, 47 to 63 Hz; IEC-connector, Power Switch, Fuses
Operating elements/ Connectors Back panel	EUT supply: Harting connector with pins for power line and aux. supply, Additional ground connector
Operating elements/ Connectors Front panel	EUT connector IEC 320 / HV coaxial connectors Surge High & Low
	HV coaxial connector Burst - out / HF- ground connection
	Drawer for mobile handheld controller with charging connector
	Status LED's for power, pulse, high voltage, EUT supply, output coupling, error
Safety standards	IEC 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use
EMC standards	EN 61000-6-2 Electromagnetic compatibility: Generic standards -Immunity for industrial environments
Master Controller	System controller for configuration, real-time tasks, pulse library, test memory, user interface and communication.
	Connector for system enhancement (Interbus), Osc. trigger, EUT fail signal, end of test signal and remote pulse trigger.
	Comm. interface (Ethernet TCP/IP) RJ 45 and optical
Coupling network	Burst/Surge coupling network according to IEC 61000-4-x. Up to 260 VAC or DC, 16A continuous, 25A short term
Standard multifunction configuration
MODULA 6100	Multi-function generator for immunity testing in accordance with the EN/IEC 61000-4-x series. With Burst Generator EFT 6501, Surge Generator SRG 6501, Mains Drop-out Simulator PQT 6501, mobile hand-held controller MHC 6501, single-phase couping network CDN 6501 (260V/16A AC/DC) including LAN (TCP/IP) interface
Custom configurations
MFR 6510	Modula mainframe incl. CDN 6501 (250V/16A ac/dc), with Mobile hand-held controller MHC 6501 and LAN (TCP/IP) interface, ready to accomplish any combination of SRG 6501, EFT 6501, PQT 6501
EFT 6501	Burst generator module for subsequent expansion
PQT 6501	Mains drop-out simulator module for subsequent expansion
SRG 6501	Surge generator module for subsequent expansion
