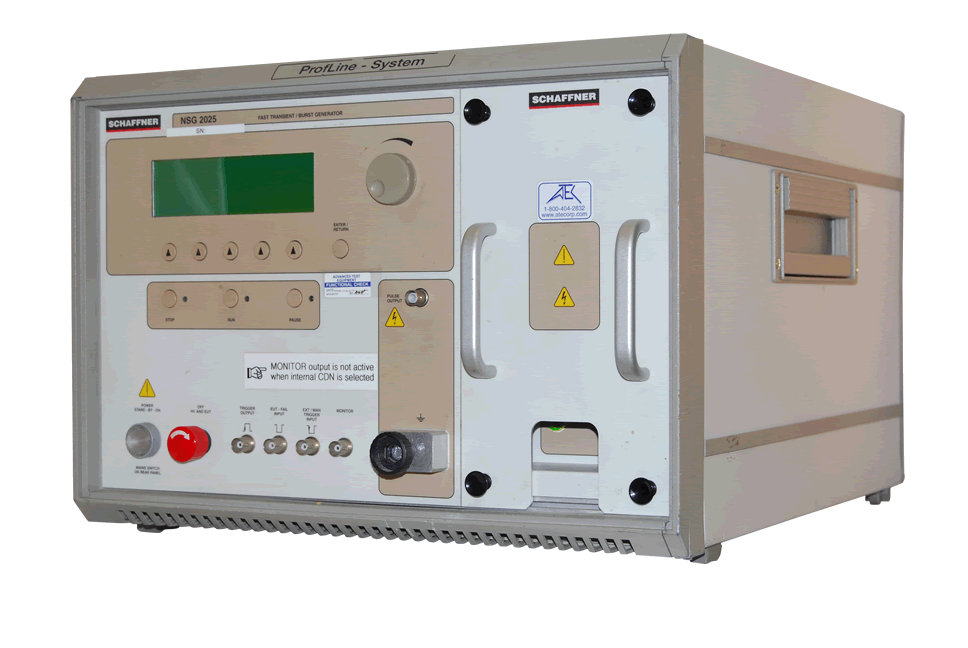

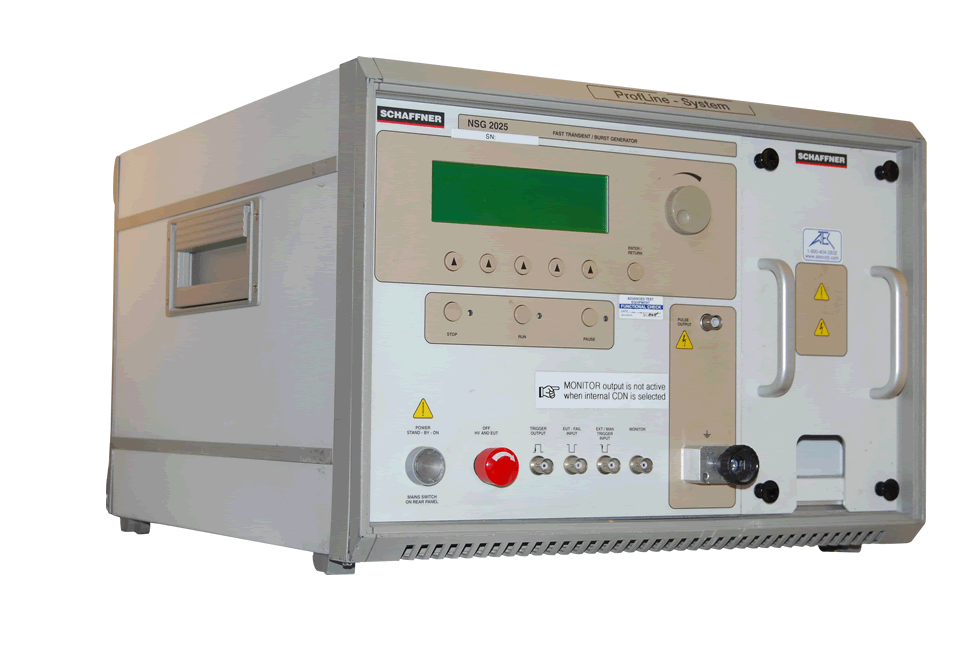

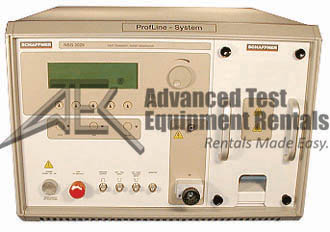

Teseq (Schaffner) NSG2025 Fast Transient/Burst Generator
Discontinued
The Teseq (Schaffner) NSG2025 Fast Transient/Burst Generator is a high end burst generator and the choice for users who need the maximum in pulse amplitude/frequency capabilities, flexibility, coupling network features and EUT connectivity. Based on a "building block" concept, the Schaffner NSG 2025 lets you select and combine pulse generator, coupling and EUT adapters to create a flexible, upgradeable EMC test work station to match your needs today and into the future. It covers all the widely used burst test specifications of IEC, EN, ANSI-IEEE as well as the known extended manufacturer's requirements.The NSG 2025 offers the most extensive range of pulse voltages and burst frequencies available in a single instrument. Pulses can be coupled into the mains supply voltage or applied as a pure high voltage for data and signal line testing.
Pre-programmed IEC standard tests are available at the touch of a button and pulse parameters are user configurable - manually via front panel control or via PC Windows software control. Not only does the Teseq / Schaffner NSG 2025 meet all the requirements of current world test standards with comfortable margins, it also anticipates likely future modifications with functions including a user-configurable burst frequency to 1MHz and extended selectable coupling modes.
| Available types | Max burst amplitude | Max burst frequency | Coupling phase | Network current | Front panel key-pad/display |
| NSG 2025-4 | 4.4 kV | 1 MHz | 3 | 30A | yes |
| NSG 2025-7 | 8 kV | 500 kHz | 1 | 30A | yes |
| NSG 2025-8 | 8 kV | 500 kHz | 3 | 30A | yes |
| Unit Power | 100 - 115 V and 220 - 240 V, 50 - 60 Hz | ||||
| Pulse Amplitude | 200 V to 4.5 or 8 kV (open circuit) adjustable in steps of 20 V | ||||
| Polarity | positive or negative, selectable | ||||
| Rise Time | 5ns ±20% (50 W, 10 - 90%) | ||||
| Pulse Width | 50ns ±30% (50 W and 1 W), 100ns ±50% open circuit | ||||
| Pulses Per Packet | 1 to 150 pulses | ||||
| Burst Duration | Pulses per packet / burst frequency, (15ms burst duration as per IEC 1000-4-4 up to 10 kHz) | ||||
| Burst Repetition | 100ms to 10s ±2ms or 2% | ||||
| Impedance | 50 W ±20% | ||||
| Coupling Network | 1-phase or 3-phase | ||||
| EUT Supply | Switched by remote control, 24 to 500 Vac, 50 - 60 Hz | ||||
| Coupling Modes | Line to reference ground (IEC 1000-4-4), selected lines together to reference ground, all lines to reference ground (common mode) | ||||
| Phase Angle | Asynchronous/synchronous 0 - 360° ±2° | ||||
| Coupling Capacitance | 33 nF | ||||
| Decouple Attenuation | >20 dB | ||||
| Cross Talk Attenuation | >30 dB | ||||
SKU: SCHA-NSG2025-5
