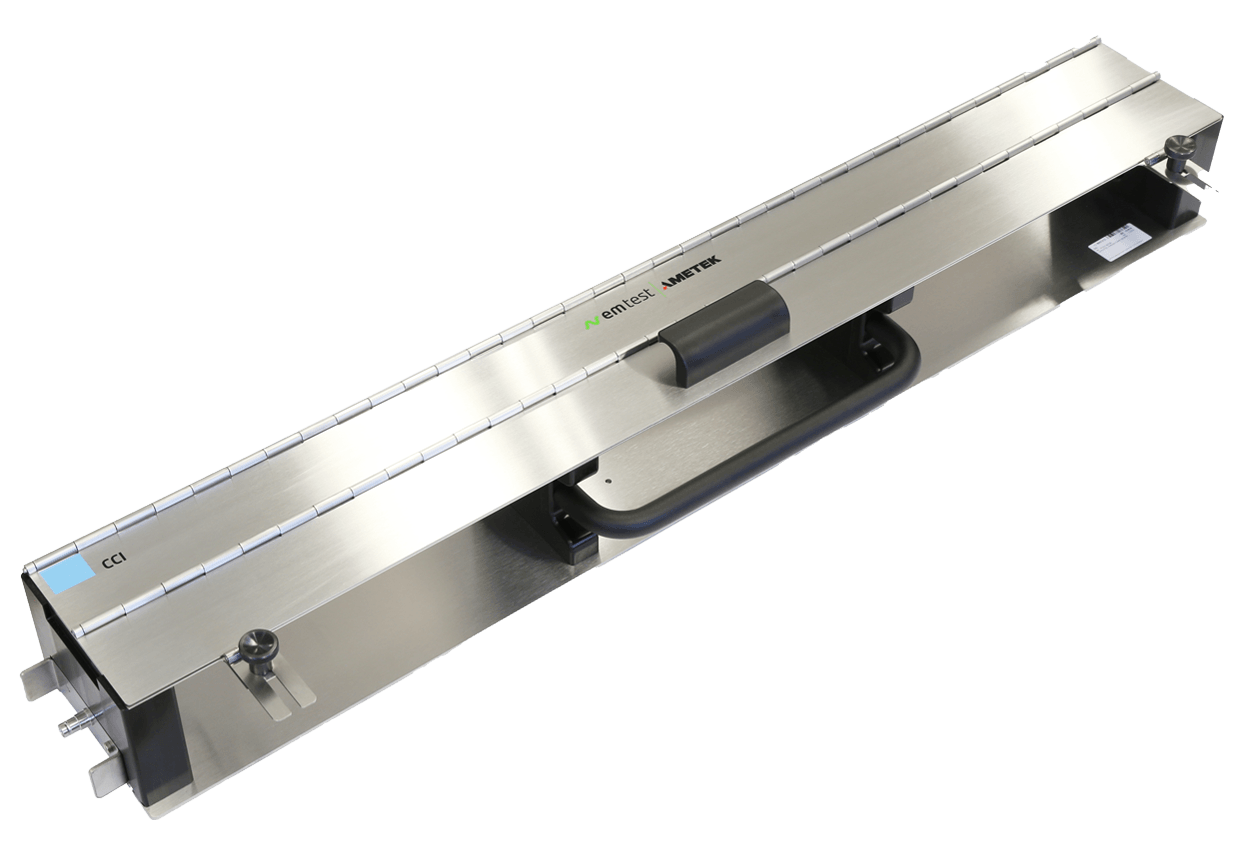

EM Test CCI Capacitive Coupling Clamp
EM Test CNV 504N7.3 Coupling/Decoupling Network
EM Test Type HFK Capacitive Coupling Clamp
EM Test V4780 S2 Single Phase Tapped Transformer
Teseq CAS 3025 Burst/EFT Pulse Verification Kit
Teseq CDN 126 Capacitive Coupling Clamp
Teseq CDN 163 EFT / Burst Coupling Network
Teseq CDN 8015 Capacitive Coupling Clamp
Teseq CDN HSS-2 For Unshielded Symmetrical High Speed Communication Lines

Tech Support
(800) 404-2832

With Every
Rental

Worldwide
Delivery

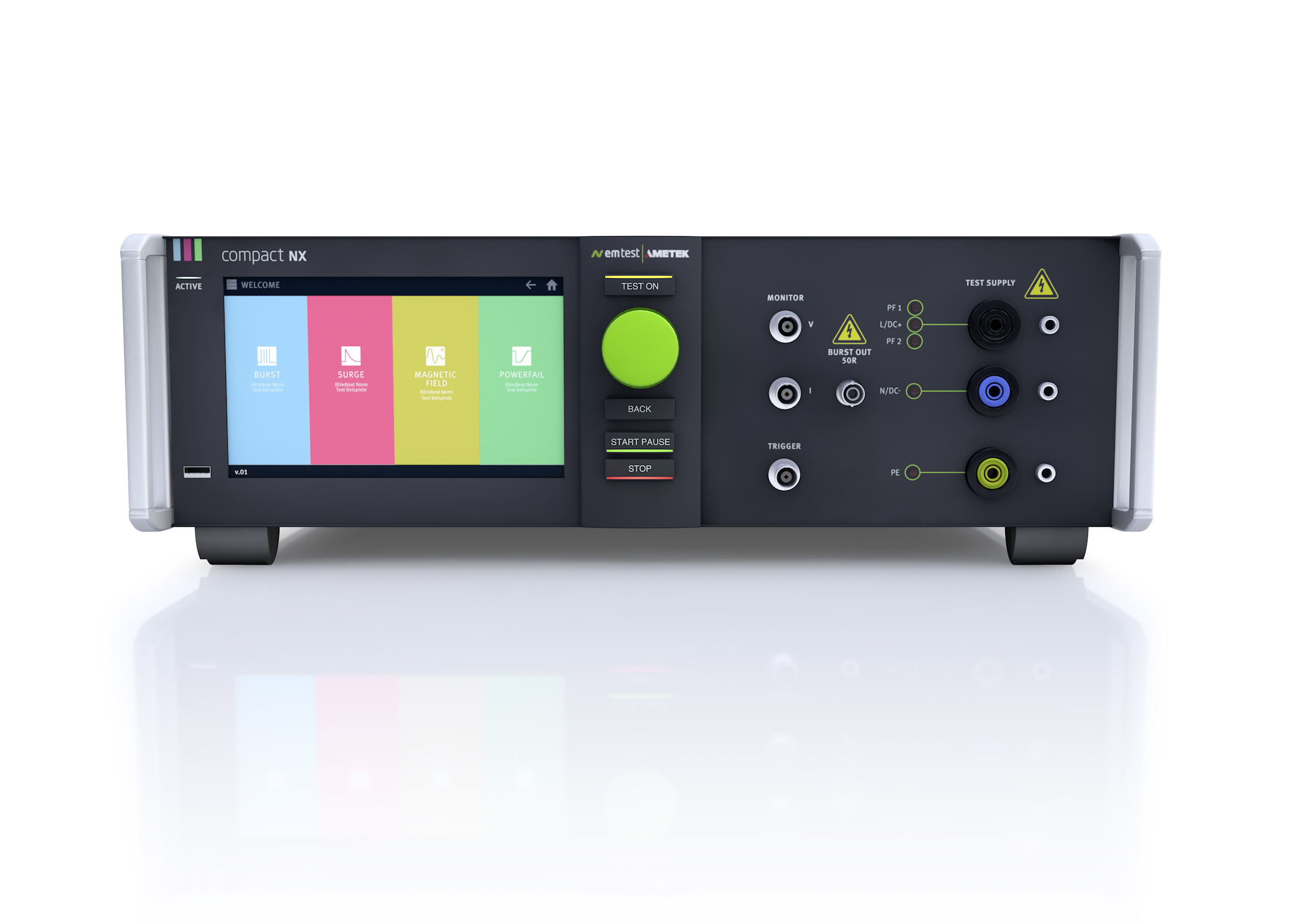

EM Test NX5 Multifunctional Test Generator

Larger

Categories

Documents

Datasheet

The EM Test NX5 Multifunctional Test Generator is a multifunctional transient immunity test system capable of simulating a variety of transients, including EFT/burst transients according to IEC 61000-4-4, surge waves with respect to IEC 61000-4-5 and power failures as detailed by IEC 61000-4-11. EM Test NX5 transient immunity generators fulfill both commercial and international standards and are used by test engineers in pre-compliance immunity testing, full compliance testing as well as the CE Marking testing process. With modules, even more IEC-standardized waveforms can be generated, including IEC 61000-4-8, IEC 61000-4-9 and IEC 61000-4-29 waveforms. Operate the EM Test NX5 Multifunctional Test Generator via your choice of either the 7" color touch screen display or remotely using the built-in Ethernet, USB or optical interfaces. The built-in CDN is extendable for 3-phase testing with an automatically controlled external CDN, capable of up to 200A per phase.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Small transient generator with 7" color touch screen
IEC 61000-4-4 | Burst testing, 5.5kV
IEC 61000-4-5 | Surge testing, 5.0kV
IEC 61000-4-11 | Power fail / dips & interrupts testing
Built-in CDN, single phase 400V/32A
Front panel operation, setup pictures, remote control via opto-link/ethernet
Simple START/STOP keys with LED operation
Gives feedback on peak voltage/current

Interface Specifications
Serial interface	2 x USB A for memory stick, 1 x USB B for service only, Opto - Link to USB for remote
Lan	Ethernet for remote
Analog output	0 - 10 VDC to control an external transformer
Sys.link	26 pin high density connector to control an external coupling network
Fail inputs	EUT monitoring via input (one each) EUT Monitor 1 EUT Monitor 2
Ext. Trigger	BNC Ext. Trigger IN pos slope 5 V
Ext. Sync Input	Differential input, 50 V - 690 VAC, 2 x 4 mm MC Safety connectors
Dimensions
16 A models	19"/3 HU, 500 mm deep, approx. 21.8 kg
32 A models	19"/6 HU, 500 mm deep, approx. 40 kg
Environment
Temperature	10 °C to 35 °C
Humidity	30 % to 75 %, non condensing
Atmospheric Pressure	86 kPa (860 mbar) to 106 kPa (1,060 mbar)
Mains
Supply voltage	85 V - 264 V
Frequency	50/60 Hz
Power	approx. 75 W
Fuses	115 V: 2 x 4 A slow blow, 230 V: 2 x 2 A slow blow
Safety
Safety standard	IEC/EN 61010
Security circuit	Control input (24 VDC)
Warning lamp	Floating contact (max. 60 V/2 A)

Specifications

EFT/Burst Module
Standards	IEC/EN 61000-4-4, EN 61000-6-1, EN 61000-6-2
Test voltage	200 V - 5,500 V ± 10%; 100 V - 2,750 V ± 10% into 50 ohm
Pulse shape	5/50 ns into 50 ohm and 1,000 ohm
Rise time tr	5 ns ± 30% into 50 ohm; 5 ns ± 30% into 1,000 ohm
Pulse width td	50 ns ± 30% into 50 ohm; 50 ns -15/+100 ns into 1,000 ohm
Source impedance	50 ohm
Polarity	Positive/negative
Surge Wave/Combination Wave Module
Standards	IEC/EN 61000-4-5, IEC/EN 61000-6-1, IEC/EN 61000-6-2
Voltage	160 V - 5,000 V ± 10%
Pulse front time	1.2 us ± 30%
Pulse time to half value	50 us ± 20%
Current	Max. 2,500 A ± 10%
Pulse front time	8 us ± 20%
Pulse time to half value	20 us ± 20%
Polarity	Positive/negative/alternating
Event counter	1 - 99,999 or endless, selectable
Power Failure/Voltage Dips & Interrupts Module
Standards	IEC/EN 61000-4-11, IEC/EN 61000-4-29, IEC/EN 61000-6-1, IEC/EN 61000-6-2
Channel PF1/PF2	AC voltage: max. 300 V AC current: max. 16 A DC voltage: max. 300 V DC current: max. 16 A
Frequency	16 Hz - 500 Hz and DC
Switching time	> 1 us < 5 us into a 100 ohm resistive load (SVP 100)
Inrush current	> 500 A
Protection	Both channels are protected against short-circuit conditions.
