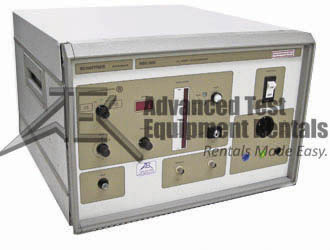

Teseq NSG 560 High Energy Pulse Generator
Discontinued
The Schaffner / Teseq NSG560 ms surge generator has been designed to simulate high current conditions that cause voltage spikes/pulses on a supply that can have an energy content of several thousand Joules. It simulates the effects of over-voltage originated by short circuits cleared by fuse operation. The pulse is shaped internally in a load-dependent manner in order to deliver the maximum possible energy to the device under test while, at the same time, avoiding any overload. Besides the pulse widths of 0.3 ms and 1.3 ms specified in the standard, the user also has the opportunity to set a number of other half-value widths. The phase angle for injection of the pulse into the mains supply is not only calibrated at 90° but is also infinitely variable between 5° and 100°. This feature is especially important for analytical measurements in development laboratories. An electrically isolated voltage monitor output is provided for recording the measurements taken.
| Pulse amplitude | 0 to 800 V, open-circuit |
| Setting and display accuracy (DVM) | 5% |
| Pulse rise time tr | 0.1 ms approx. (load- dependent) |
| Pulse width tP | 0.3 ms (-10%, +25%) to 1 .3 ms (-5%,+15%), open circuit, adjustable in 5 steps |
| Charge capacitors | 1.4 mF |
| Charge capacitors 2.5 mF | |
| 3.5 mF | |
| 5 mF | |
| 6 mF | |
| Phasing | 5° to ≤100° |
| Internal impedance | 0.1 to 0.2 Ω typ . (dynamic) |
| Mains coupling | Semiconductor network, Residual pulse at mains input, practically 0 |
| EUT supply | 100 to 230 Vac nominal, 260 Vac max., 16 A max., 50/60 Hz |
| Inputs/outputs | |
| IEC equipment connector for the generator power input | |
| Interlock and warning lamp connector | |
| 16 A equipment connector for the EUT supply input | |
| EUT supply outlet (mains socket and universal safety sockets) | |
| External trigger input (TTL-level) for pulse triggering | |
| Voltage monitor output, electrically isolated, BNC, attenuated 100:1 | |
| Operating and display elements | |
| Mains switch with indicator | |
| 2-pole switch for EUT supply | |
| 16 A over-current trip switch | |
| Charge capacitor selector switch | |
| Multi-turn potentiometer for pulse amplitude setting | |
| Infinitely variable potentiometer for setting the phase angle | |
| Key-switch for locking the pulse triggering | |
| Push-button for pulse triggering | |
| Digital display of the pulse amplitude | |
| Bar display for the charge voltage |
- Conforms to VDE 0160, ANSI C62.41 (1991), EN 50178, DIN VDE 0160 or EN50178: Safety requirements for electronic equipment for use in electrical power installations and their assembly into electrical power installations
- Test voltages of up to 800 V
- Internal pulse shaping
- Extremely low internal impedance
- Performs over-voltage strength classification testing
- High pulse currents up into the kA range
- High pulse energy of up to 1 .9 kJ
- Pulse width adjustable from 0.3 to 1 .3 ms
SKU: SCHA-NSG560
