Thermo Keytek CEMaster EMC/EMI Immunity Test Simulator

Discontinued

View Alternatives

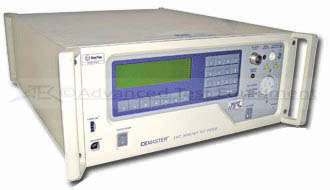

The Thermo Keytek CEMASTER EMC / EMI Immunity Test Simulator is a customer configured tester that allows you to use a system specific to your needs and budget. It provides compliance-level testing to IEC 1000-4-X Series Immunity Standards. Starting with a base platform, you add only the functions outlined in your product test plan. If, in the future, your testing requirements change, your CEMASTER may be upgraded to incorporate the additional functions required to meet your testing parameters.

Product Info

Test Type	Model	Standard	Feature	Range
ESD	CM-ESD	IEC 61000-4-2	Peak Air Discharge	500V-8.8kV
			Peak Contact Discharge	500V-4.4kV
			Repetition Rates	Single Shot, 1 pulse/sec and 20 pulses/sec
			Waveform
EFT	CM-EFT	IEC 61000-4-4	Peak Voltage	250V-2.5kV
			Frequency	1-100kHz
			Waveform
Surge	CM-SURGE	IEC 61000-4-5	Voltage Waveform	1.2/50µs
			Peak Voltage	250V-2.5kV
			Current Waveform	8/20µs
			Peak Current	125A-1.25kA
			Waveform
			Repetition Rate	To 6 per minute at 500V
Power Frequency Magnetic Field	CM-HPWR	IEC 61000-4-8	Field Frequency	50/60Hz
			Magnetic Field	0.5A/m - 4A/m
Pulse Magnetic Field	CM- HPULSE	IEC 61000-4-9	Field Pulse	8/20µs
			Amplitude Field	50A/m - 800A/m
			Test Parameters
Dips & Interrupts	CM-PQF	IEC 61000-4-11	Dips	70%, 40%
			Interrupts	0% (Short or Open)
			Transition Time	1µs - 5µs
			Inrush	>250 Amps @ 120V
				>500 Amps @ 240V
			AC Mains Monitor	0 - 265 VAC
			Test Parameters
Power Requirements	Input Voltage:	90 - 250VAC
	Input Current:	1A @ 120V; 0.5 @ 240V
Coupler/Decoupler Range	AC Voltage Ratings:	50 - 250VAC
	AC Current Ratings:	10A continuous, >16A start-up
	DC Voltage Ratings:	0 - 100VDC
	DC Current Ratings:	10 Amps
Physical	Dimensions:	7.0" H x 18.5" W x 22" D
	Approx. Weight:	64 lbs

SKU: KEYT-CEMASTER
