IEC 61000-4-11: Testing and Measurement Techniques - Voltage Dips, Short Interruptions and...
Standard Overview
IEC 61000-4-11 defines the immunity test methods and range of preferred test levels for electrical and electronic equipment connected to low-voltage power supply networks for voltage dips, short interruptions, and voltage variations.
This standard applies to electrical and electronic equipment having a rated input current not exceeding 16 A per phase, for connection to 50 Hz or 60 Hz AC networks.
IEC 61000-4-11 does not apply to electrical and electronic equipment for connection to 400 Hz A.C. networks. Tests for these networks will be covered by future IEC standards.
The object of IEC 61000-4-11 is to establish a common reference for evaluating the immunity of electrical and electronic equipment when subjected to voltage dips, short interruptions, and voltage variations.
This second edition cancels and replaces the first edition published in 1994 and its amendment 1 (2000). This second edition constitutes a technical revision in which:
Electronic products are tested for immunity to dips and interrupts to ensure their continued reliable operation if subjected to dips and/or interrupts on the AC power mains. The European Union’s EMC Directive mandates dips and interrupts testing for virtually all electrical and electronic products as a condition for obtaining the CE Mark before shipping products to member states of the European Union.
1 IEC 61000-4-11 and EN 61000-4-11 are virtually identical standards.
The test for inrush current is performed by switching the generator from 0% to 100% at both 90Þ and 270Þ to insure sufficient peak inrush current drive capability for both polarities.
Read More About EMC Testing
To learn more about IEC 61000-4-11, see Preen's application article.
This standard applies to electrical and electronic equipment having a rated input current not exceeding 16 A per phase, for connection to 50 Hz or 60 Hz AC networks.
IEC 61000-4-11 does not apply to electrical and electronic equipment for connection to 400 Hz A.C. networks. Tests for these networks will be covered by future IEC standards.
The object of IEC 61000-4-11 is to establish a common reference for evaluating the immunity of electrical and electronic equipment when subjected to voltage dips, short interruptions, and voltage variations.
Recommended Bundle
For PQF Dips and Interrupts Tests: Haefely AXOS 5 Transient Generator |
+ |
|
= |
 IEC 61000-4-11 Dips & Interrupts up to 5kV Learn More |
This second edition cancels and replaces the first edition published in 1994 and its amendment 1 (2000). This second edition constitutes a technical revision in which:
- Preferred test values and durations have been added for the different environment classes;
- The tests for the three-phase systems have been specified.
Dips and Interrupts Background
Dips and interrupts can occur on the AC power mains as a result of a fault in the distribution system such as an open circuit breaker or a sudden large load being turned on in the immediate vicinity. A power distribution system fault can cause a switch in the distribution grid to open and close several times, resulting in multiple interrupts to electrical and electronic equipment.Electronic products are tested for immunity to dips and interrupts to ensure their continued reliable operation if subjected to dips and/or interrupts on the AC power mains. The European Union’s EMC Directive mandates dips and interrupts testing for virtually all electrical and electronic products as a condition for obtaining the CE Mark before shipping products to member states of the European Union.
Applicable Standards
Generic Immunity Standards, Product Standards, and Product Family Standards require that dip and interrupt tests be performed in accordance with Basic EMC Standards: IEC 61000-4-11 and EN 61000-4-11. Thermo KeyTek’s Application Note, “EMC Standards Overview,” provides an overview of European Standards for electromagnetic compatibility, describes how the Standards relate to one another, and lists sources for procuring copyrighted documents.1 IEC 61000-4-11 and EN 61000-4-11 are virtually identical standards.
Basic EMC Standard
The Basic EMC Standard for Dips and Interrupts defines methods of generating consistently reproducible electrical dips and interrupts for test purposes. They specify characteristics of the AC mains to the EUT such as peak inrush current, transition times and durations. While the Basic EMC Standard specifies how to perform Dips and Interrupts testing, the Generic, Product and Product Family Standards specify the test levels and pass/fail Performance Criteria.Test Levels
| Standard | Applicability | Levels |
|---|---|---|
| EN 50082-1 | Generic Immunity - Residential, Commercial and Light Industrial Not required | |
| EN 50082-1 Draft | Generic Immunity - Residential, Commercial and Light Industrial | 0%, 40%, 70% & 100% |
| EN 50082-2 | Generic Immunity - Industrial Environment | Not required |
| EN 50082-2 Draft | Generic Immunity - Industrial Environment | 0%, 40%, 70% & 100% |
| EN 55104 | Immunity for Household Appliances, Tools and Similar Apparatus | 0%, 40%, 70% & 100% |
Peak Inrush Current
IEC 61000-4-11 requires the simulator to be capable of supplying peak inrush currents of up to 500 A for 220 V to 240 V mains, and up to 250 A for 100 V to 120 V mains. Additionally, the Standard requires this capability to be measured using a bridge rectifier connected via a switch to a discharged 1700 µF capacitor. The parallel discharge resistance should be chosen to allow several RC time constants between tests. An example in Annex A (normative) uses a 10k ohm resistance, providing a time constant of 17 s, "...so that a wait of 1.5 to 2 minutes should be used between inrush drive capability tests."The test for inrush current is performed by switching the generator from 0% to 100% at both 90Þ and 270Þ to insure sufficient peak inrush current drive capability for both polarities.
Waveform Verification

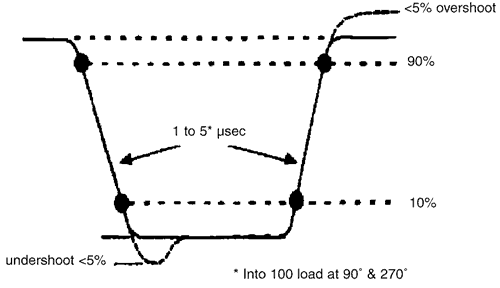

IEC 61000-4-11 requires that the simulator output be verified periodically. For Dip and Interrupt test simulators, it is necessary to verify the voltage transition levels, transition times to 100%, and the inrush current capability. Most modern oscilloscopes are capable of observing the voltage levels and transition times. For verifying the inrush current, a bridge rectifier, suitably rated 1700µF capacitor and appropriate current transformer are required.Rise and fall times of PQF™ simulator transitions
Test Execution
According to IEC 61000-4-11, tests must be performed in compliance with the manufacturer's test plan, which shall specify:- Input power of the EUT
- Performance Criteria
- Operation modes of the EUT
- Test set-up description
- Type of designation of the EUT
- Information on possible connections, cables, peripherals, etc. After each group of tests, a complete functional test must be performed
EUT Performance Criteria
For Dip and Interrupt tests, Performance Criteria vary in some standards depending on the duration or severity of the dip and/or interrupt. Under some conditions, loss of function is allowed, provided that the function is self-recoverable or can be restored by the control operations. Under less severe conditions, degradation of performance is allowed during the test, however, the unit must continue to operate as intended after the test. Refer to the tables located in the Generic, Product and Product Family Standards for specific Performance Criteria. The product cannot become unsafe under any conditions.Read More About EMC Testing
To learn more about IEC 61000-4-11, see Preen's application article.
Products Used in Testing

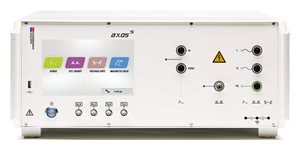

Haefely AXOS5 Compact Immunity Test System
- Easy to operate with manual and automated test modes, software assisted test preparation
- Pre-defined test routines and visual aided test setups
- Economic & efficient touch screen guarantees reduction of time and effort

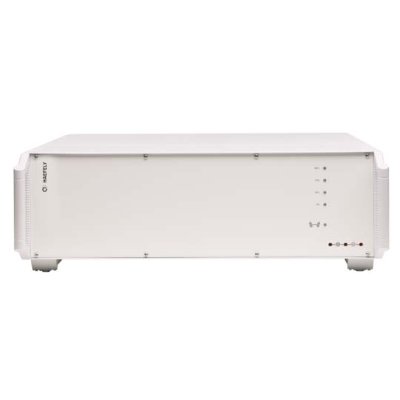

Haefely DIP 116 Automatic Dip Transformer | 16 A, 264 V
- 7" / 800 x 480 / 24 bit touchscreen
- Reduction of daily working effort due to easy access menu structure
- Intuitive menu prompting

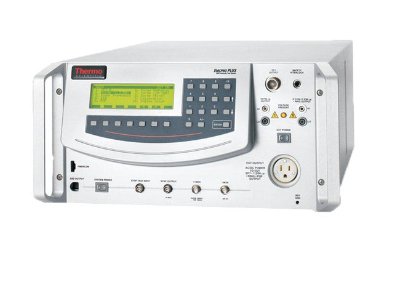

M Precision Laboratories EMCPro PLUS EMC Test System
- Portable, mid-range EMC test system
- Resident capabilities for compliance testing to 6 IEC/EN standards
- Addresses ANSI/IEEE C62.41, ITU, ETSI, & UL 864 standards
Pacific Power 3150AFX AC & DC Programmable Power Source
- DC, 15 to 1,200 Hz frequency range
- Accuracy ± 0.01%
- 125 Arms / 62.5 ADC
Pacific Power 3500 AZX Regenerative AC and DC Power Source | 50 kVA, 50 kW, 3P
- Full power source and sink capability
- Full 100% of current and power rating in both source and sink model
- Parallel configurations for higher power
EMC Partner IMU-MGS Conducted Immunity Generator
- One touch parameter editing in run state
- Impulse stability over long periods
- Intuitive multi touch graphical interface
EMC Partner IMU-MGE Conducted Immunity Test System
- Surge / CWG 4kV / 5 kV / 6kV / 8kV
- Ring Wave 6kV / 8kV
- EFT 4kV / 5kV / 6kV / 7kV

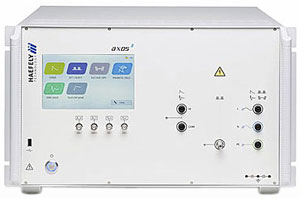

Haefely AXOS8 Compact Conducted Immunity Test System
- 0.2 – 5.0 kV ±10% at coaxial output
- 50 Ohms
- 5 ns ±30%
California Instruments CSW5550 Programmable AC/DC Power Source
- Output: 5.5kVA, 0-156/312V, 3ph
- Frequency Range: 40Hz - 5kHz
- Input Power: 187/264Vrms (3 wire), 342/457Vrms (4 wire), 3ph
California Instruments Tahoe | TA0045A1 Power Supply | 45 kVA
- Output: 45kVA, 0-166/333Vrms, 1/3ph
- Frequency Range: 16Hz - 905Hz
- Input Power: 208/600VAC, 3ph
California Instruments Sequoia Series | Regenerative AC Grid Simulator
- 480V overvoltage testing supported
- Non-Linear current waveform programming
- 500uS time resolution for Transients

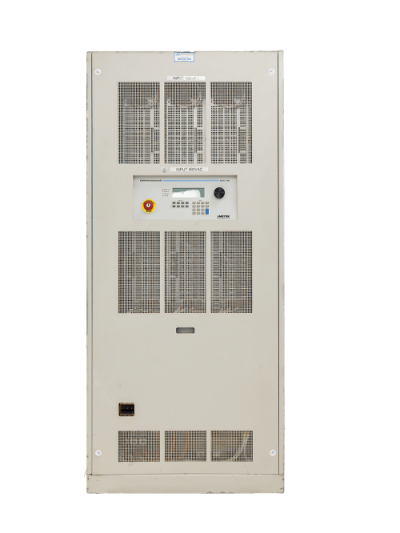

California Instruments RS90 AC DC Power Source | 90 kVA
