Telecordia GR – 1089 (formerly Bellcore) sets the criteria for wireline and wireless EMC applications. GR-1089 is used to ensure telecommunications equipment contains the electromagnetic compatibility (EMC) and electrical safety criteria necessary to perform safely and reliably.
GR – 1089 contains NEBS (Network Equipment - Building System) criteria that cover equipment in Central Offices (COs); equipment in the Outside Plant (OSP) at locations such as Controlled Environmental Vaults (CEVs), Electronic Equipment Enclosures (EEEs), and huts; equipment in uncontrolled structures such as cabinets; and network equipment at the customer premises.
Telecommunications equipment, by nature of its application in the telecommunications network, may be exposed to one or more sources of electromagnetic energy. The criteria in this document are intended to help avoid equipment damage and malfunction because of lightning, 50/60-Hz commercial power fault conditions, Electrostatic Discharge (ESD), Electrical Fast Transient (EFT), Electromagnetic Interference (EMI), operation in the presence of a DC potential difference, and operation in a steady-state induced voltage environment.
This document also presents other criteria intended to help establish that equipment will not become a fire or electrical safety hazard in the presence of severe lightning or power fault conditions. Safe voltage levels for intentionally applied sources, electrochemical corrosion effects, grounding, and DC powering are considered as well.
In addition to wireline services, this standard applies to wireless systems that provide fixed and/or mobile services that are installed in locations with telecommunications network equipment or information technology networking equipment.
"Electromagnetic Compatibility and Electrical Safety - Generic Criteria for Network Telecommunications Equipment." Telecordia. N.p., n.d. Web. Retrieved on 25 Nov. 2013.
Products Used in Testing:
Haefely

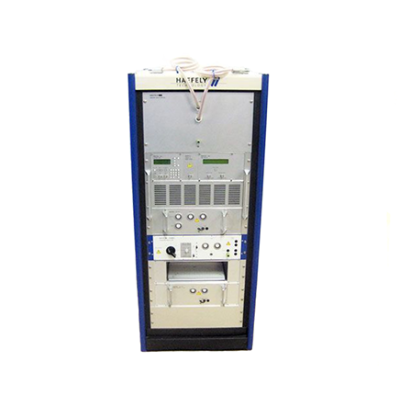

Haefely / Bellcore 1089 Lightning Test System
The Haefely / Bellcore 1089 Lightning Test System features a 12-pair hybrid wave module with an integrated Tip and Ring coupler. With a reliable semiconductor discharge switch, the Haefely 1089 can meet technicians'...
Thermo Fisher Scientific

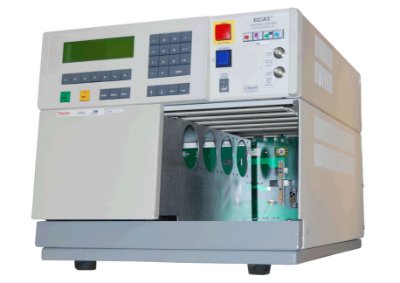

Thermo Keytek ECAT E103 Control Center
The Thermo Keytek ECAT E103 Control Center is for use with the Thermo Keytek ECAT Modular EMC Test System.
Expert Computer Aided Testing (ECAT) allows you to Plan tests, to Test EUT’s, to Analyze test results, and to...
Thermo Fisher Scientific

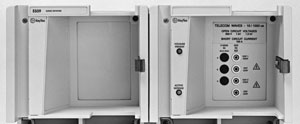

Thermo Keytek ECAT E509A Surge Simulator for Bellcore GR-1089
The Thermo Keytek ECAT E509A Surge Simulator is a plug-in module used with the Thermo Keytek ECAT Modular EMC Test System for true three-terminal testing using 10/1000μs voltage and current waves, as required by Telecordia...
