EM Test TSS 500N10 Telecom Surge Generator for Belcore/Telcordia GR-1089


Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent, rent to own, or lease the EM Test TSS 500N10 Telecom Surge Generator for Belcore/Telcordia GR-1089
Enlarge Image

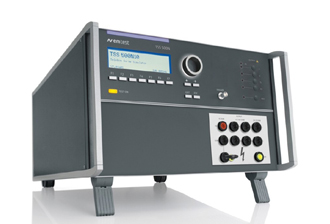

EM Test TSS500N10
Request Quote Print Page
TSS500N10 Datasheet

Telecommunication networks are exposed to lightning events. Therefore telecommunication equipment being connected to the outside world need to have appropriate protection to show an acceptable immunity to surge transients in order not to fail in case of lightning events. Telecom Surge Simulators of the TSS 500N series are used to proof the immunity of telecommunications equipment.


The EM Test TSS 500N10 is used to perform tests as per EN/IEC 61000-4-5 and related standards and complies with the requirements of ITU-T and FCC 97-270 (part 68) for Surge B pulse. It also generates the Surge voltage pulse 1.2/50us as per EN/IEC 60950. The TSS 500N10 can also accommodate telecom standard Telecordia GR-1089.

EM Test TSS500N10 Features
  • Standalone tester for 10/700us pulse as per EN/IEC 61000-4-5
  • Test voltage up to 10kV
  • Complies to ITU-T for enhanced level testing
  • Complies to FCC part 68 (Surge B pulses)
  • Built-in CDNs for 2-wire and 4-wire applications
EM Test TSS500N10 Specs
Trigger
Automatic Automatic pulse release
Manual Single pulse release
External External pulse release
CRO trigger 5V trigger signal for oscilloscope
General Data
Dimensions, weight 19"/6HU, approx. 35kg
Supply voltage 115/230V +10/-15%
Fuses 2xT2AT (230V) or 2xT4AT (115V)
EM Test TSS500N10 Applications
  • Industry
  • Components
  • Medical
  • Broadcast
  • Telecom
  • Residential
