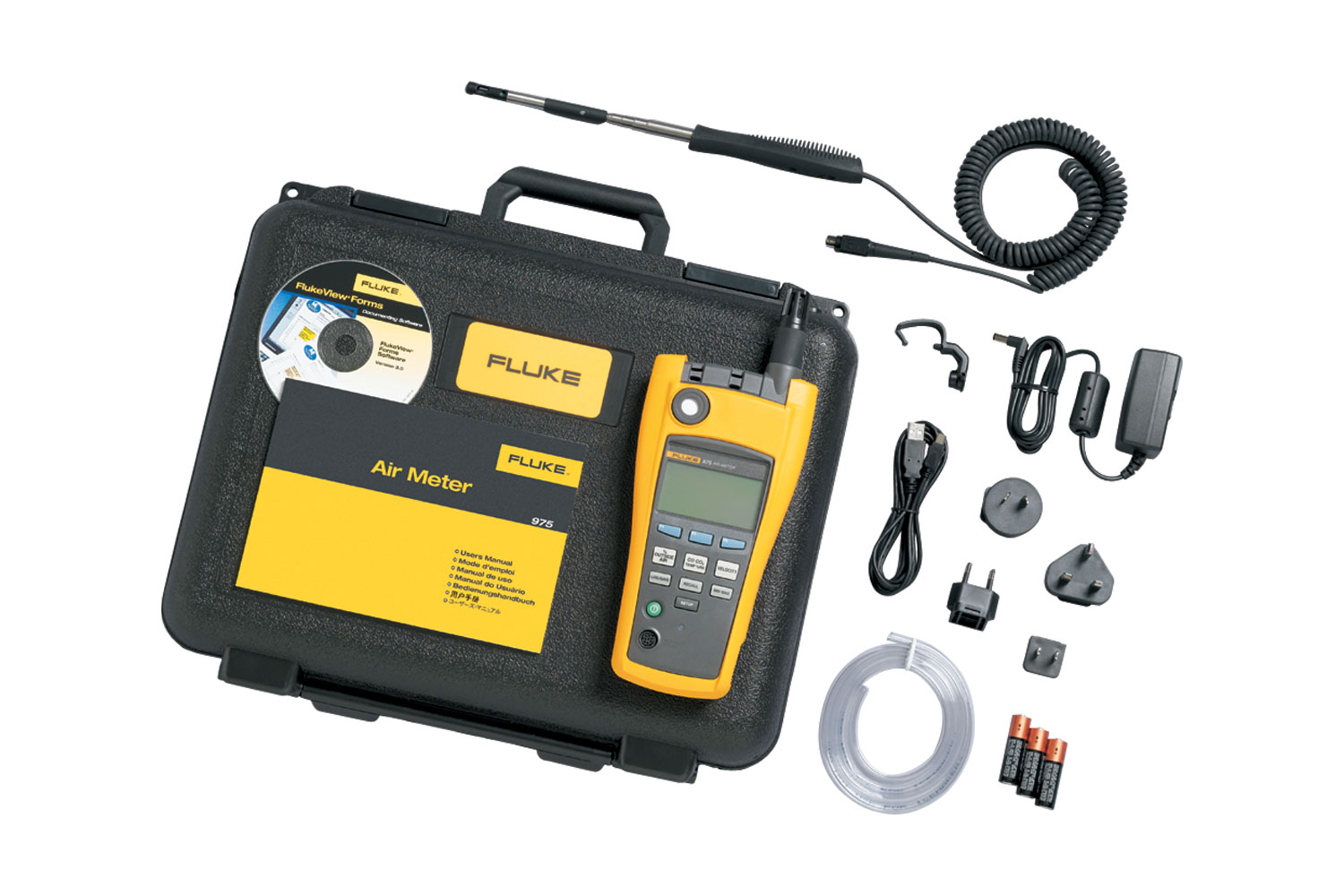

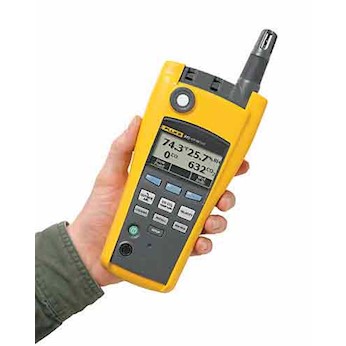

The Fluke 975V AirMeter with Velocity Probe raises indoor air monitoring to the next level by combining five powerful tools in one, rugged and easy-to-use handheld device. Use the Fluke 975V to optimize HVAC ventilation settings for ASHRAE 62 recommendations, actively monitor conditions that promote a productive environment, and quickly and accurately address occupant comfort complaints the first time.

The Fluke 975V was designed to support engineers across the globe, featuring a multi-language user interface (English, French, German, Portuguese, and Spanish) and US and Metric measurement options. Automatic backlighting and power-off allow for hassle-free operation. Users have the option of logging in single-point or continuous data modes and can download stored data with the bundled USB cable and FlukeView Forms software. The AirMeter is built for portability and can be powered by rechargable lithium battery, ac power, or backup power supply of three AA batteries.

The Fluke 975V measures, calculates, and displays:

Temperature, dew point, and wet bulb all measured in Celsius (°C) or Fahrenheit (°F).
Relative humidity (%RH).
Carbon monoxide (CO) levels measured in ppm.
Carbon dioxide (CO2) levels measured in ppm.
Air velocity (standard and actual) measured in mps or fpm.
% outside air based on temperature or CO2.
Flow rate displayed in m3 /s or cfm.
Absolute barometric pressure- shown at startup only.
Minimum, maximum, and average readings for temperature, relative humidity, wet bulb, dew point, velocity, CO, and CO2.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Respond to comfort-related calls from occupants.
Verify the operation of building HVAC control systems.
Determine whether adequate ventilation exists.
Monitor air flow and velocity.
Test for dangerous carbon monoxide leaks.
Perform duct traversals.
Optimize HVAC systems to manage energy costs

Specifications

Measured Specifications
Temperature	Range	-20°C to 50°C (-5°F to 122°F)
	Display resolution	0.1°C (0.1°F)
	Accuracy	±0.9°C / ±1.62°F from 40°C to 60°C ±0.5°C / ±1.00°F from 5°C to 40°C ±1.1°C / ±1.98°F from -20°C to 5°C
Relative humidity	Range	10% to 90% RH, non-condensing
	Display Resolution	1%
	Accuracy	±2% RH (10% RH to 90% RH)
Air velocity	Range	50.0 fpm to 3000 fpm 0.25 m/sec to 15 m/sec
	Display Resolution	1 fpm (0.005 m/sec)
	Accuracy	±4% or 4 fpm¹ ±4% or 0.02 m/sec¹ whichever is greater
	Accuracy	1. Accuracy specification only valid for velocity readings above 50 fpm.
C0	Range	0 to 500 ppm
	Display Resolution	1 ppm
	Accuracy	±5% or ±3 ppm, whichever is greater, @ 20°C and 50% RH
C0₂	Range	0 to 5000 ppm
	Display Resolution	1 ppm
	Accuracy	Warm up time 1 min (5 minutes for full specification) 2.75% + 75 ppm
Calculated Specifications
Dew point temperature	Range	-44°C to 50°C, (-47°F to 122°F)
	Display Resolution	0.1°C (0.1°F)
	Accuracy	±1°C when temp: -20°C to 50°C RH: 40% to 90% ±2°C when temp: -20°C to 50°C RH: 20% to 40% ±4°C when RH: 10% to 20%
Wet bulb temperature	Range	-16°C to 50°C, (3°F to 122°F)
	Display Resolution	0.1°C, (0.1°F)
	Accuracy	±1.2°C when RH: 20% to 90% temp: -20°C to 60°C ±2.1°C when RH: 10% to 20%
Volume flow rate (in a duct)	Range	0 to 3,965 M3/m, (0 to 140,000 cfm)
	Display Resolution	0.001 M3/min, (1 cfm)
	Accuracy	N/A: The volume flow calculation will be a simple average of the data points times the duct area
% outside air (based on temperature)	Range	0 to 100%
% outside air (based on temperature)	Display Resolution	0.1
% outside air (based on CO₂)	Range	0 to 100%
% outside air (based on CO₂)	Display Resolution	0.1% N/A
General Specifications
Operating and storage temperature	-20°C to 50°C (-4°F to 122°F)
Humidity	10% to 90% (non-condensing)
Altitude	Up to 2000 m (6562 ft)
Shock and vibration	MIL-PRF-28800F: Class 2
Multi-language interface	English, French, Spanish, Portuguese and German
Battery	Rechargeable Li-Ion (primary), three-AA (backup)
Data logging	25,000 records (continuous), 99 records (discrete)
Warranty	Two-years
