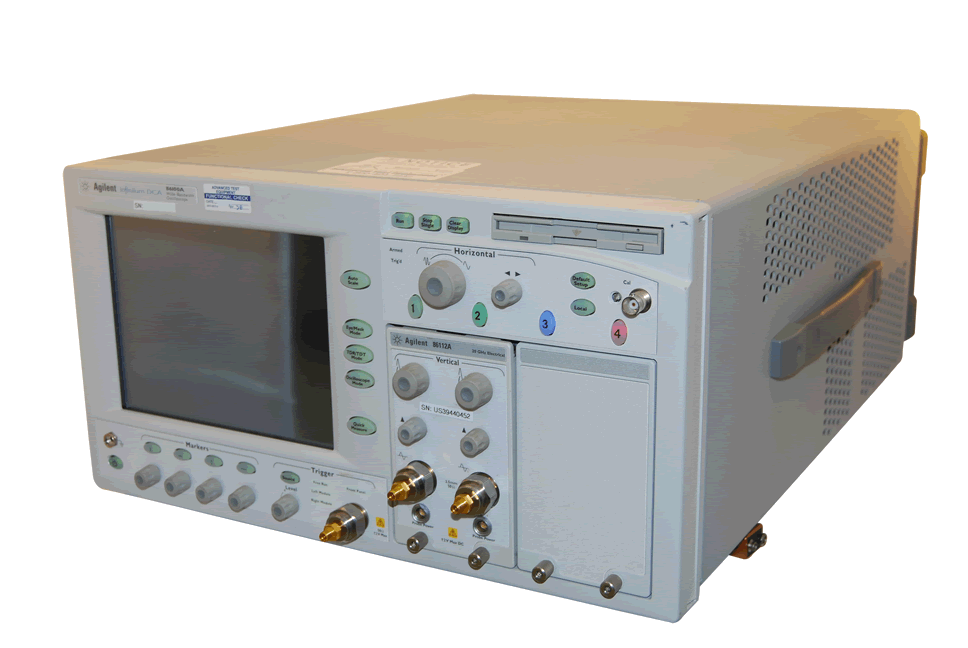

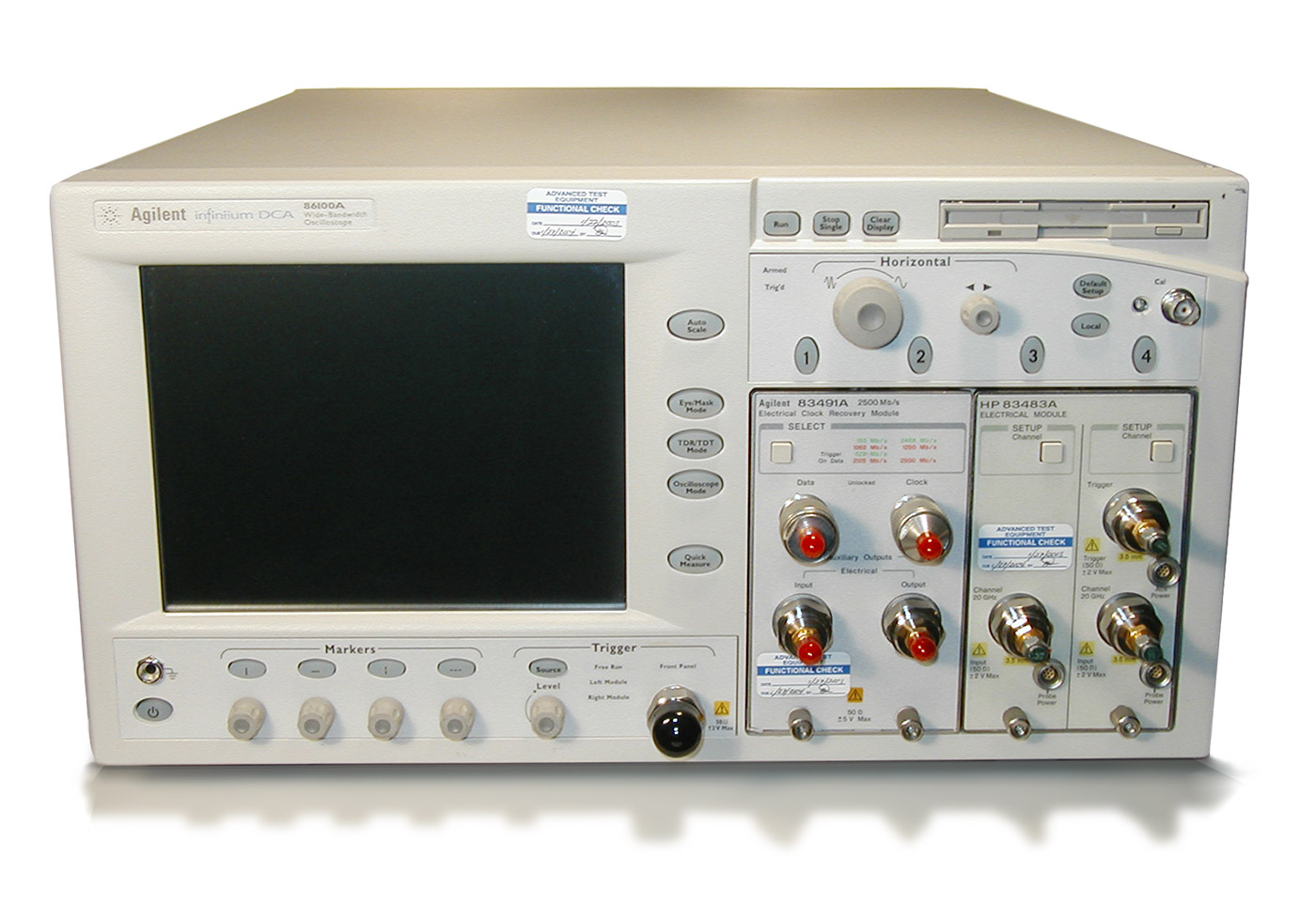

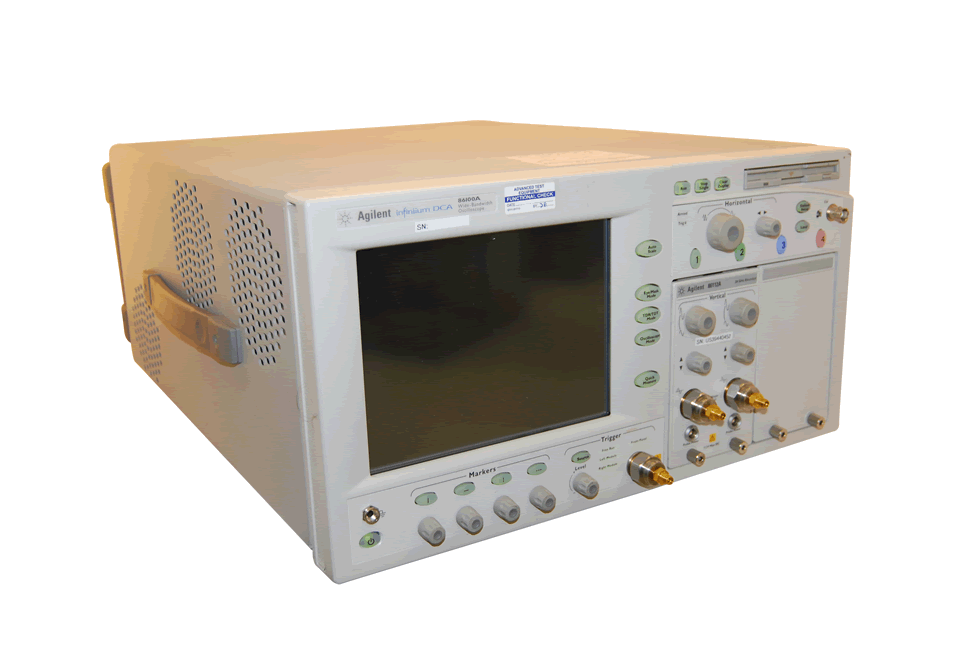

HP Agilent 86100A Wide Trigger Bandwidth 12 GHz

Rent, lease, or rent to own HP Agilent 86100A Wide Trigger Bandwidth 12 GHz
Enlarge Image
Rent, lease, or rent to own HP Agilent 86100A Wide Trigger Bandwidth 12 GHz Rent, lease, or rent to own HP Agilent 86100A Wide Trigger Bandwidth 12 GHz Rent, lease, or rent to own HP Agilent 86100A Wide Trigger Bandwidth 12 GHz
Request Quote Print Page
Manual

The HP Agilent 86100A Wide Trigger Bandwidth 12 GHz includes Digital Communications Analysis (DCA) and Time Domain Reflectometry (TDR) tools. Performing TDR measurements can be accomplished quickly with the powerful 86100 processor, saving time and money. The 54753 and 54754 modules allow single ended and differential measurement. The Windows-based O.S. offers a familiar interface for testing. Advanced Test Equipment Rentals also supplies any additional peripherals needed for testing.


One feature of the Infiniium Oscilloscope's interface that is particularly helpful is the 2-dimensional zoom box, which allows the user to quickly select specific areas of a waveform for analysis. Impedence and time scaling is automatically adjusted in transition from one viewing area to another, increasing efficiency and saving time.



2-D Zoom:
Option 001:12 GHz Trigger Bandwidth



Agilent 86100A Features:


  • Bandwidth to 50 GHz
  • 100 Mb/s to 12.5 Gb/s and beyond
  • Built-in compliance tests
  • Integrated optical and electrical channels
  • MS Windows 98 user interface
  • Compatible with 83480A series modules (shown below)
  • Channels: 1 to 4
