86146B Benchtop High Performance Optical Spectrum Analyzer
Enlarge Image

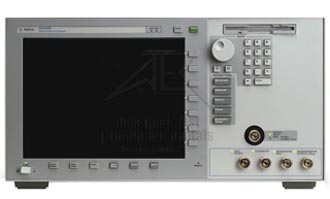

Keysight 86146B
Request Quote Print Page

The Keysight 86146B is a grating-based optical spectrum analyzer. The OSA uses a patented double-pass monochromator design to simultaneously achieve high sensitivity and dynamic range with a fast sweep time. This is key for characterizing DWDM components, broadband passive components, but also active optical components like narrowband sources (DFBs), wideband sources (FPs) and optical amplifier (EDFA, Raman amplifiers and SOAs).

The 86146B is a high performance benchtop optical spectrum analyzer with a filter mode that provides the flexibility to drop a single DWDM channel with fast-tuning speed, low-insertion loss, and highly repeatable wavelength accuracy.

Another application of the filter mode is to measure time-resolved chirp (TRC). Using the filter with a 86100C DCA, chirp measurements can be made on lasers.

Keysight 86146B Features
  • High amplitude accuracy (0.5 dB) and stability (10mdB), Low Polarization dependence (50 mdB)
  • Wide Wavelength Range (600 nm to 1700 nm), Highest Wavelength Accuracy (10 pm) and Repeatability
  • Widest Variability in Resolution Bandwidth (60 pm to 10 nm) with accurately calibrated filter shapes and excellent dynamic range
  • Calibrated filter shapes and high accuracy = accurate system
  • Flexible settings let the OSA fit into many applications
  • Fast sweep speeds to maximize throughput
  • Single Wavelength Channel Drop
  • Fast sweep time due to its high and user selectable sensitivity (down to -90dBm)
  • Built-in applications for Passive Component Test, WDM Test, Optical Amplifier Test, Source Test
  • Optional built-in wavelength calibrator, white light source, current source, EELED source, multimode input and tunable filter output
