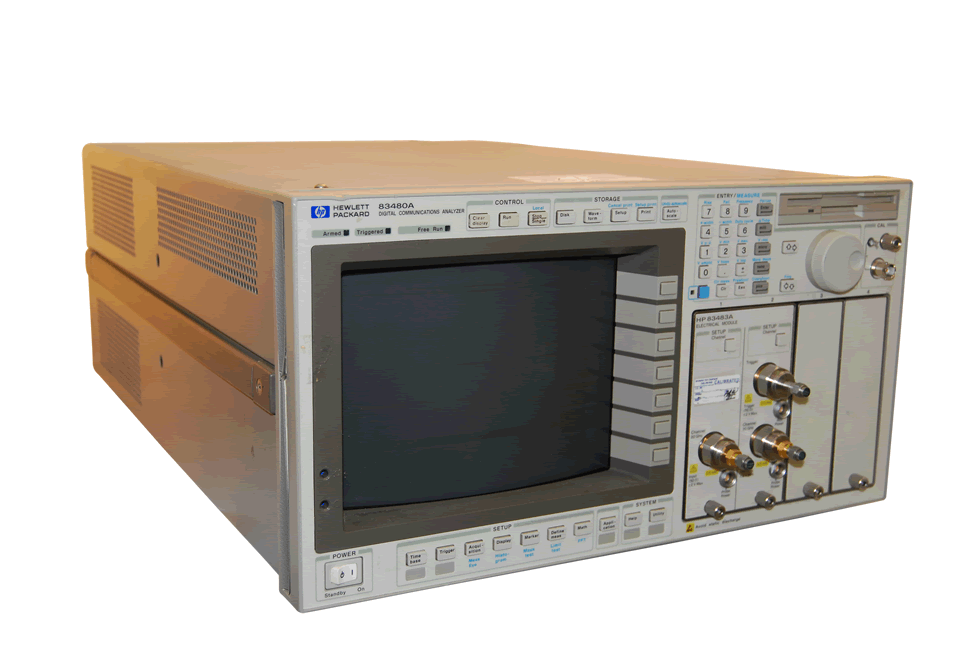

Keysight 83480A Digital Communications Analyzer

Discontinued

The 83480A model has been discontinued.

Replaced by the Keysight N1000A

Digital Communications Analyzer. Keysight 83480A Digital Communications Analyzers were previously manufactured by Agilent Technologies.

Product Info Related Products

Time Base (Horizontal)

Scale Factor (Full scale is 10 divisions)
Minimum: 10 ps/division
Maximum: 1s/division
Delay (Time offset relative to trigger)
Minimum: 22 ns
Maximum: 1000 screen diameters or 10 seconds, whichever is smaller
Time Interval Accuracy: ≤ ps ±0.1% of reading (dual marker measurement
Time Interval Resolution: ≤ (screen diameter)/(record length) or 62.5 fs, whichever is less

Trigger - External Input Only

Sensitivity
dc to 100 MHz: 40 mV peak-to-peak
100 MHz to 2.5 GHz: Increasing linearly from 40 mV at 100 MHz to 200 mV at 2.5 GHz
2.0 to 12 GHz: (15 GHz typical) Option 100
Jitter: (trigger and time base combined, one standard deviation) ≤2.5 ps +5E-5 x delay setting (tested using a 2.5 GHz synthesized source at 200 mV

Most accurate and repeatable extinction ratio measurement
Highest measurement throughput
Modular platform with 155 Mb/s to 10 Gb/s testing, including Gigabit Ethernet

Channels (Vertical)

Vertical parameters and specifications are generally dictated by the plug-in module used with the mainframe. Please refer to the specifications for the individual module used. The following refers to parameters that are plug-in independent.

Resolution: Up to 15 bits with averaging. Variable IF gain sets minimum resolution to better than or equal to 9 bits on all ranges.

Options

Keysight 83481A - Optical Channel/Electrical Channel 155 Mb/s and 622 Mb/s Plug-In Module
Keysight 83482A - Optical Channel/Electrical Channel High-Speed Plug-In Module
Keysight 83483A - Dual Channel 20 GHz Electrical Plug-In Module
Keysight 83484A - Dual Channel 50 GHz Electrical Plug-In Module
Keysight 83484B - Single Channel 50 GHz Electrical Plug-In Module
Keysight 83485A - Optical Channel/Electrical Channel 20 GHz Plug-In Module
Keysight 83485B - Optical Channel/Electrical Channel High-Speed Plug-In Module
Keysight 83486A - 20 GHz Electrical/2.5 GHz Optical (multimode fiber) Plug-In Module
Keysight 83487A - 20 GHz Electrical/2.5 GHz Optical (multimode fiber, short wavelength) Plug-In Module, 1063 and 1250 Mbit/s filters
Keysight 83491A - Electrical Clock Recovery Module
Keysight 83492A - Multimode Clock Recovery Module
Keysight 83493A - Single-Mode Clock Recovery Module
Keysight 54753A - Single-Ended TDR/TDT Plug-In Module
Keysight 54754A - Differential TDR/TDT Plug-In Module
