PalmSens PalmSens4 1 MHz Potentiostat

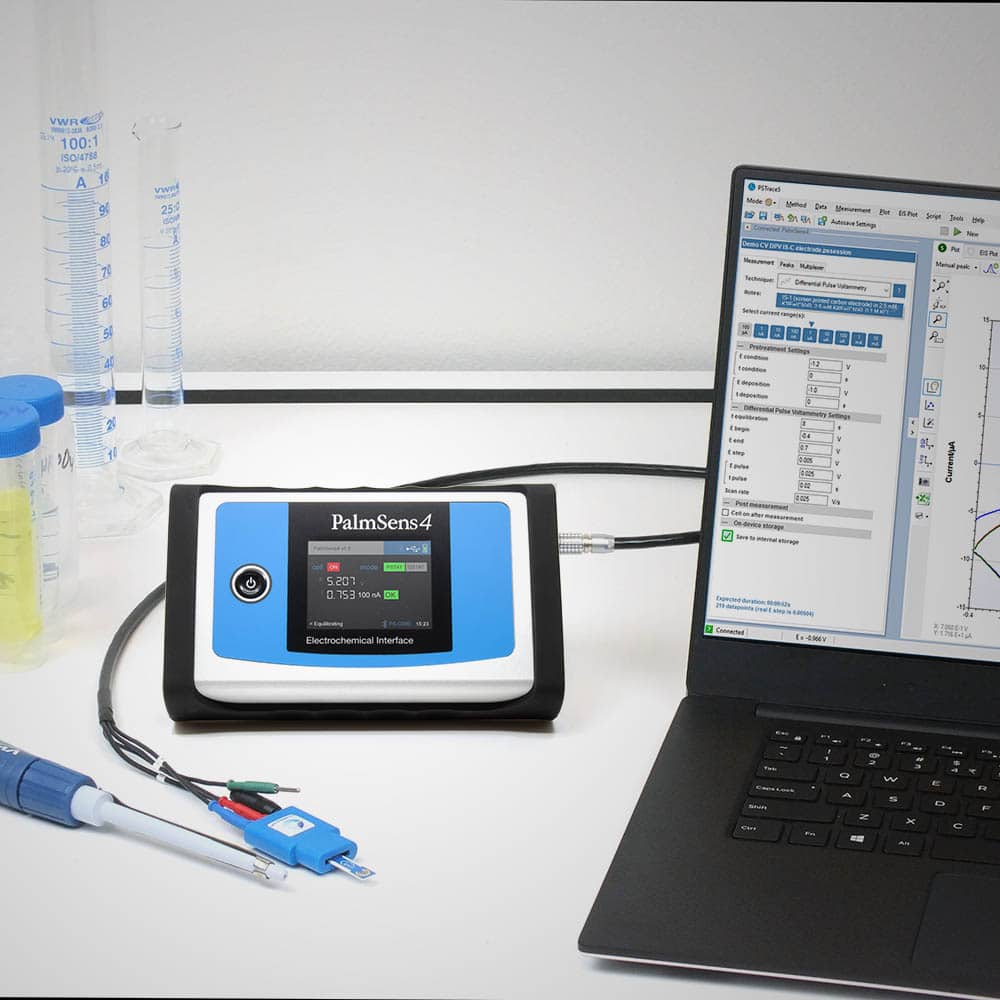

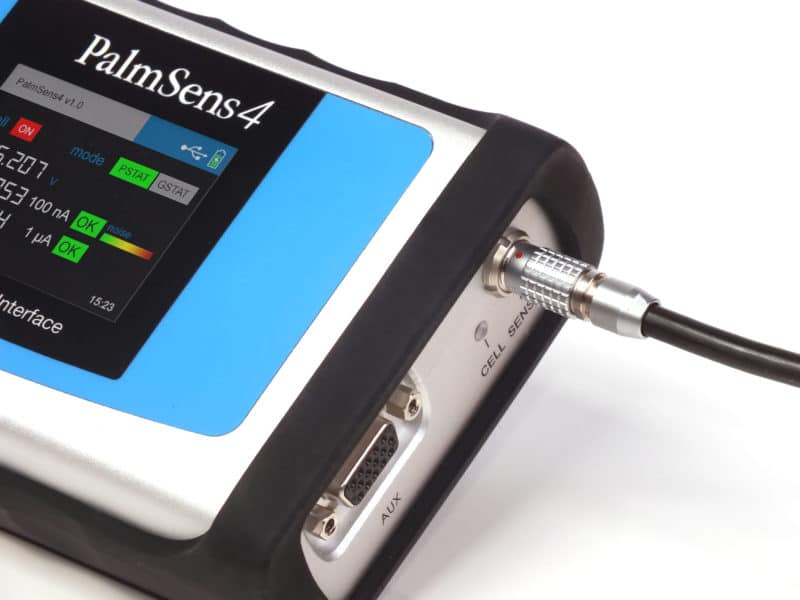

The PalmSens PalmSens4 Potentiostat is a versatile and powerful device that can collect measurements as a potentiostat, galvanostat, and impedance analyzer. The PalmSens4 potentiostat has a maximum frequency of 1 MHz, an exceptional DC-potential range of ±10 V, and a current range that stretches from 100 pA to 10 mA. Thanks to its efficient and handheld design, the PalmSens4 only requires battery power for use and has a durable design that's ideal for use in the field.

The PalmSens4 Potentiostat also offers reliable use as a galvanostat, boasting a current range from 1 nA to 10 mA. FRA/EIS impedance measurements are also capable with the flagship PalmSens device, making use of a vast frequency range from 10 μHz to 1 MHz.

Product Info Related Products

General Specifications
DC Potential Range	±10 V
Compliance Voltage	±10 V
Maximum Current	±30 mA (typical)
Max Acquisition Rate	150,000 data points/s

Potentiostat Specifications
Applied DC-Potential Resolution	76.3 µV (18-bit)
Applied Potential Accuracy	≤0.1% ±1 mV offset
Current Ranges	100 pA to 10 mA (9 ranges)
Current Accuracy	≤0.1% (at Full Scale Range)
Measured Current Resolution	0.005 % of current range (18-bit, 5 fA on 100 pA range) 0.0025% of 10 mA range

Galvanostat Specifications
Current Ranges	1 nA to 10 mA (8 ranges)
Applied DC-Current Range	±6 times applied current range
Applied DC-Current Resolution	0.0076% of applied current range (<10 mA) 0.0038% of 10 mA range
Measured DC-Potential Resolution	78.13 μV at ±10 V (gain 1, 18-bit) 7.813 μV at ±1 V (gain 10) 0.7813 μV at ±0.1 V (gain 100)
Measured DC-Potential Accuracy	≤0.05% or ±1 mV (for \|E\| < ±9 V) ≤0.2% (for \|E\| ≥ ±9 V)
