Tektronix AM503 Current Probe Amplifier


Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Tektronix AM503 Current Probe Amplifier
Enlarge Image

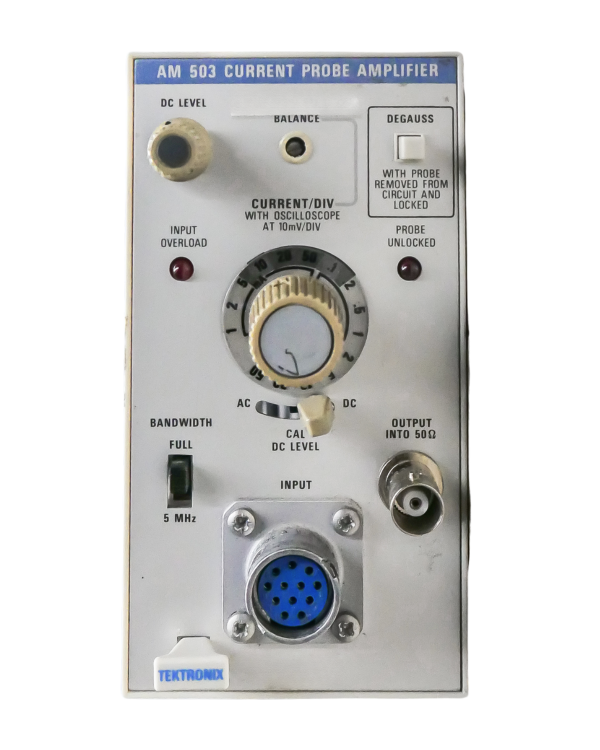

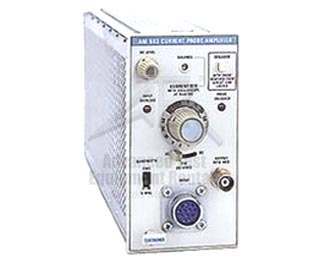

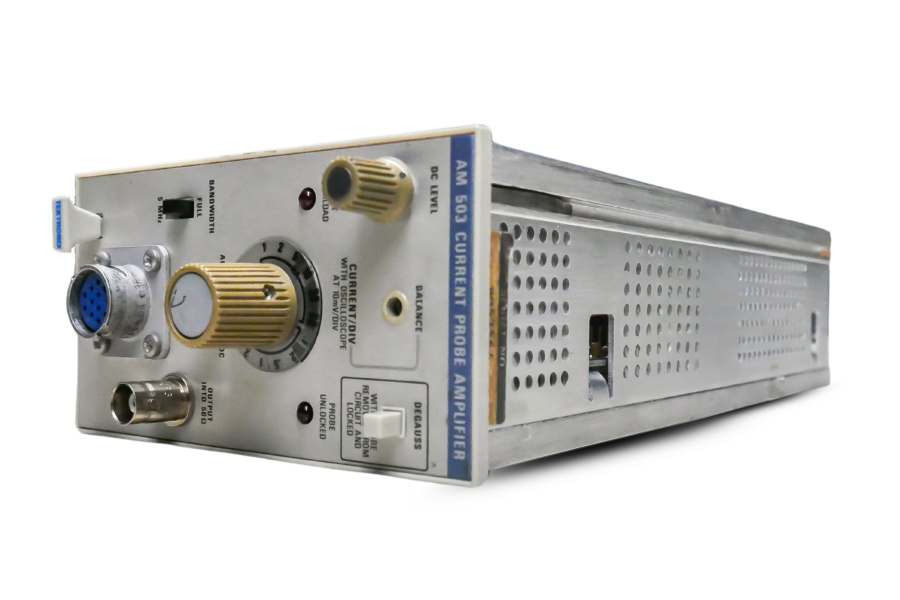

Tektronix Test Equipment AM503
Manual Accessory Kit

This oscilloscope probe is an accessory and is only available to rent with an oscilloscope.


  See All Oscilloscopes



Tektronix Test Equipment AM503 Features
  • Displays Current Signals on an Oscilloscope
  • Current Range, Maximum Current, and Bandwidth Determined by the Probe.
  • Allows display of current on any oscilloscope with 10 mV/div sensitivity, 50 ohms or 1 M ohm input.
  • Bandwidth can be set to Full (where it is limited by the probe in use) or to 5 MHz.
  • Coupling can be switch selected to ac or dc.
Tektronix Test Equipment AM503 Specs
Maximum Input Current 20 A (dc + peak ac) for A6302; 100 A (dc + peak ac) for A6303
Maximum Voltage for Current Under Test (Bare Conductor) 500V (dc + peak ac) for A6302; 700 V (dc + peak ac) for A6303
Bandwidth (-3dB) Dc to at least 50 MHz with A6302; Dc to at least 15 MHz with A6303
Rise Time (Full Bandwidth) 7 ns or less with A6302; 23 ns or less with A6303.
Deflection Factor 1 mA/div to 5 A/div for A6302; 20 mA/div to 50 A/div for A6303; In a 1-2-5 sequence for both probes.
