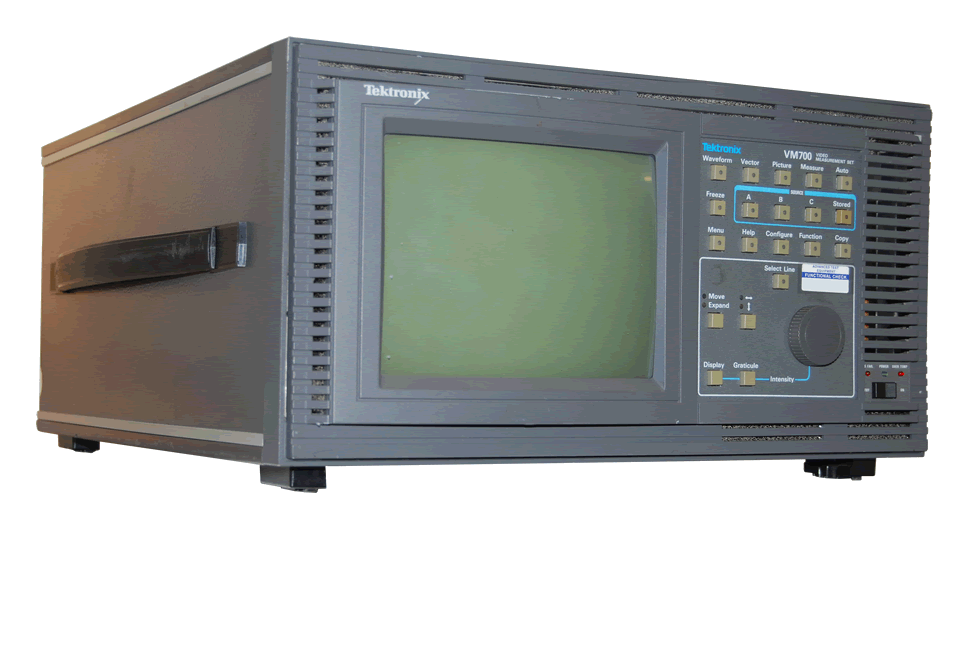

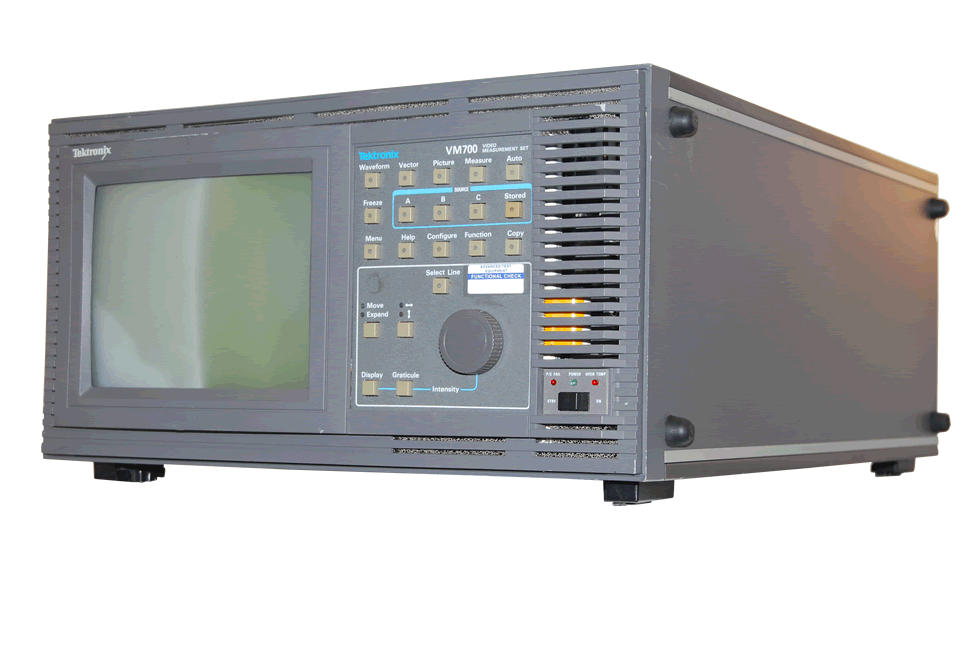

Tektronix VM700 Video Measurement Test Set

Used Sales Price: $2500
Tektronix VM700 Video Measurement Test Set
Enlarge Image
Tektronix VM700 Video Measurement Test Set Tektronix VM700 Video Measurement Test Set Tektronix VM700 Video Measurement Test Set
Request Quote Print Page
Datasheet

The Tek VM700 is a complete video monitoring and measuring instrument which can be used for automatic monitoring, as well as for manual measurements. The user can select a display of numeric values to confirm the quality of the signal path, or may select graphic displays for more detailed analysis.


Automatic Video Measurement Set:

The VM700 makes most standard televideo measurements automatically, including those specified in RS-250B/EIA-250C, NTC-7, and RS-170A. These measurements can be compared with user-defined limits and an alarm message generated when these limits are violated. New graphic displays are provided for measurements such as signal-to-noise ratio and group delay, enabling the user to better understand (and improve) the transmission path.
