ASTM:

ASTM D3580: Standard Test Methods for Vibration Test of Products

Significance:

Products are exposed to complex dynamic stresses in the transportation environment. The determination of the resonant frequencies of the product may aid the packaging designer in determining the proper packaging system to provide adequate protection for the product, as well as providing an understanding of the complex interactions between the components of the product as they relate to expected transportation vibration inputs.

Scope:

These test methods cover the determination of resonances of unpackaged products and components of unpackaged products by means of vertical linear motion at the surface on which the product is mounted for test. Two alternate test methods are presented: Test Method A—Resonance Search Using Sinusoidal Vibration, and Test Method B—Resonance Search Using Random Vibration.

Download Standard

Products Used in Testing:

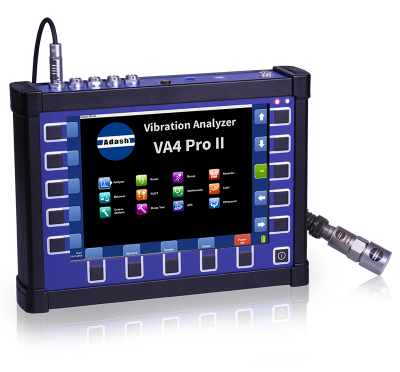

Adash Adash A4400 VA4 Pro II Vibration Analyzer

The Adash A4400 VA4 Pro II is a 4-channel vibration analyzer that provides a frequency range of up to 90 kHz, an FFT resolution of 3,276,800 lines, and is fully equipped with a Triaxial accelerometer and full software. The...

Brüel & Kjær Bruel & Kjaer 2270 Sound Level Meter and Vibration Analyzer

The Bruel & Kjaer 2270 Sound Level Meter and Vibration Analyzer is a 2-channel handheld vibration and sound measurement device which features a dynamic range of over 120 dB and operates over a broadband linear frequency...

Cincinnati Sub-Zero Cincinnati Sub-Zero TCB-1.3 Benchtop Vibration Table

The Cincinnati Sub-Zero TCB-1.3 Benchtop Vibration Table is suitable for testing small to medium-sized products. This model includes a temperature range from -70°C to +163°C when used with an environmental chamber, and...

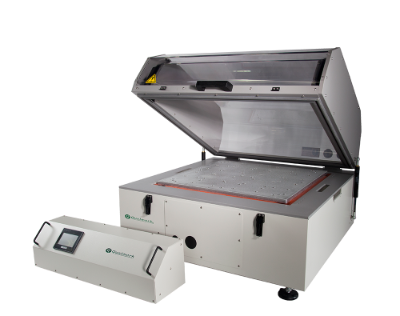

Espec Espec OVTT 24 Vibration Table Top Chamber

The Espec OVTT 24 Vibration Table Top Chamber is a stand-alone, compact, repetitive-shock vibration system that features ESPEC Qualmark’s patented six-degree-of-freedom vibration technology. The OVTT or Omni Axial...

Vibration Research Vibration Research VR5600 Shaker Test System

The Vibration Research VR5600 Shaker Test System is is a high performance system capable of very high acceleration (110g, bare table). It is used for general purpose as well as modal testing. The shaker field supply is...
