The Advanced Amplifiers AA-12G-4KWP is a solid state continuous wave, class AB high power pulse amplifier that operates over a frequency range of 1.0 - 2.0 GHz and generates 4KW of power. Its revolutionary design offers a unique form factor, high energy efficiency and simple front panel operation. The AA-12G-4KWP has a power gain of 66 dB minimum and operates with an input of 208 VAC (12 KW).

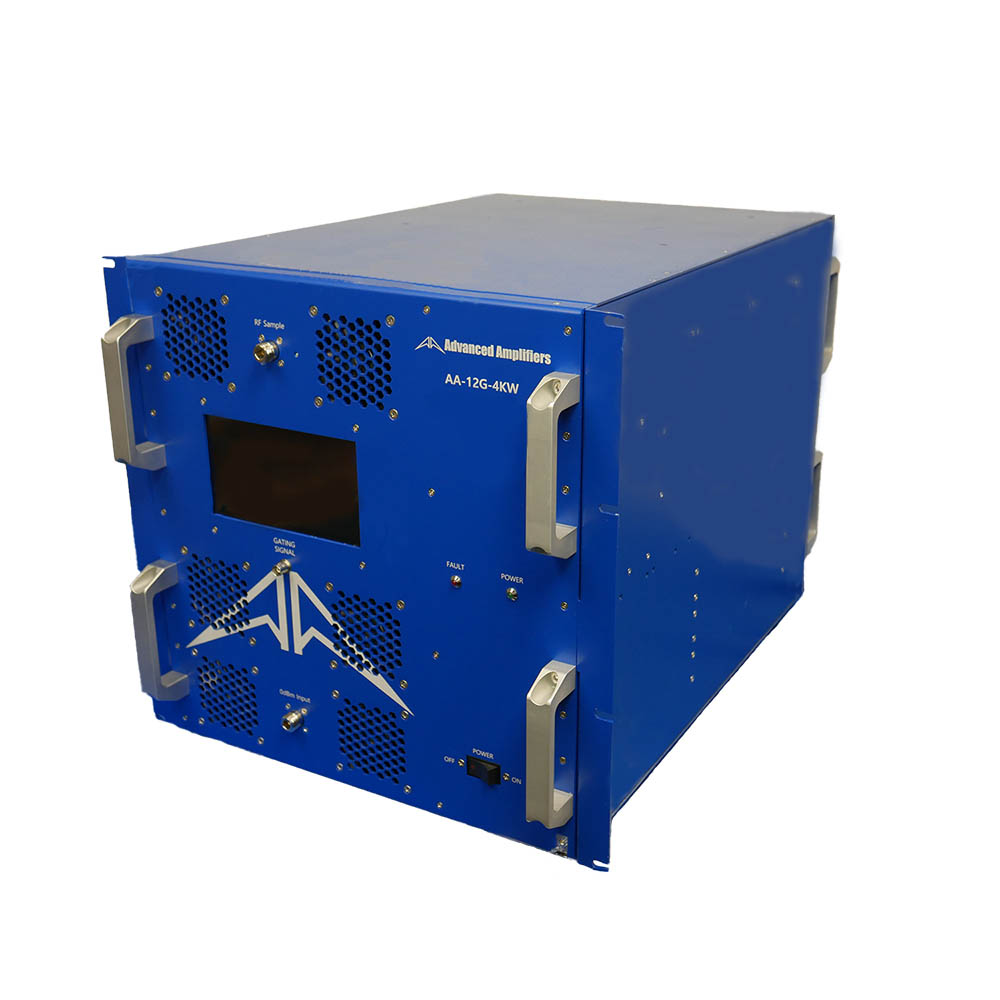

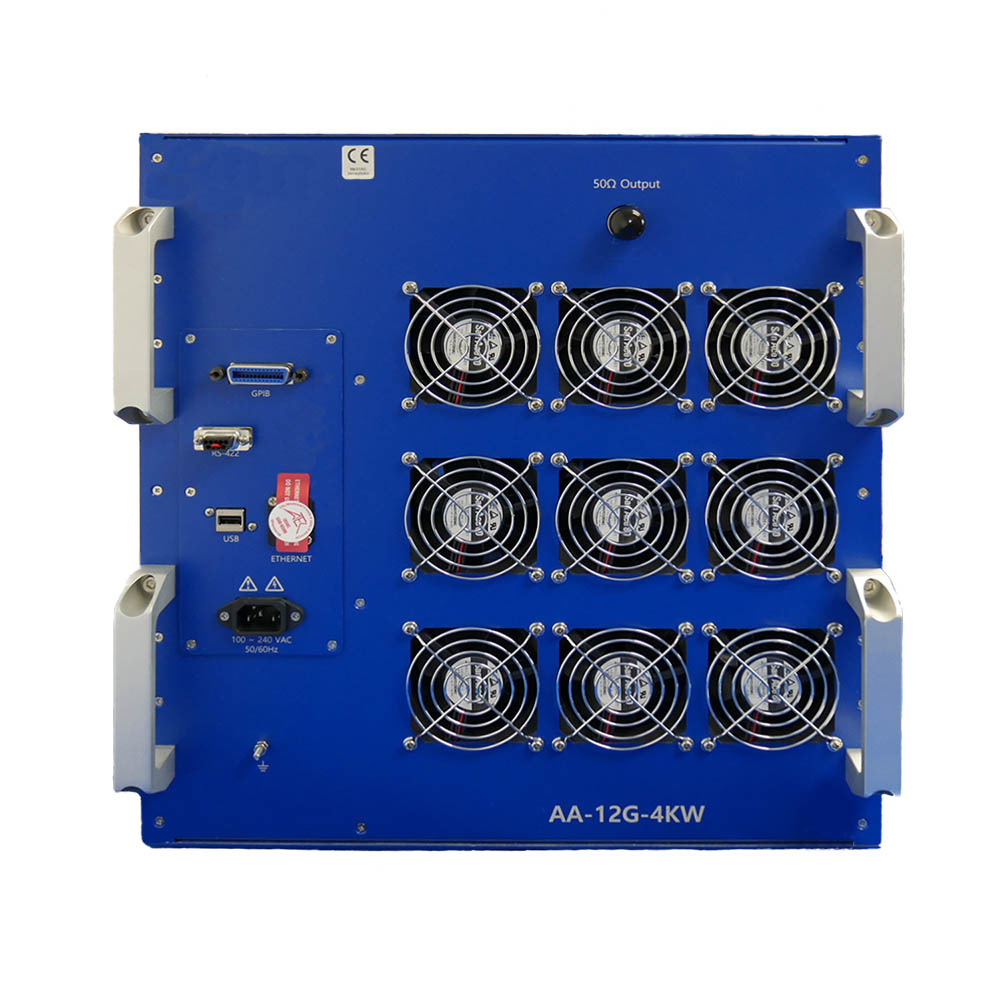

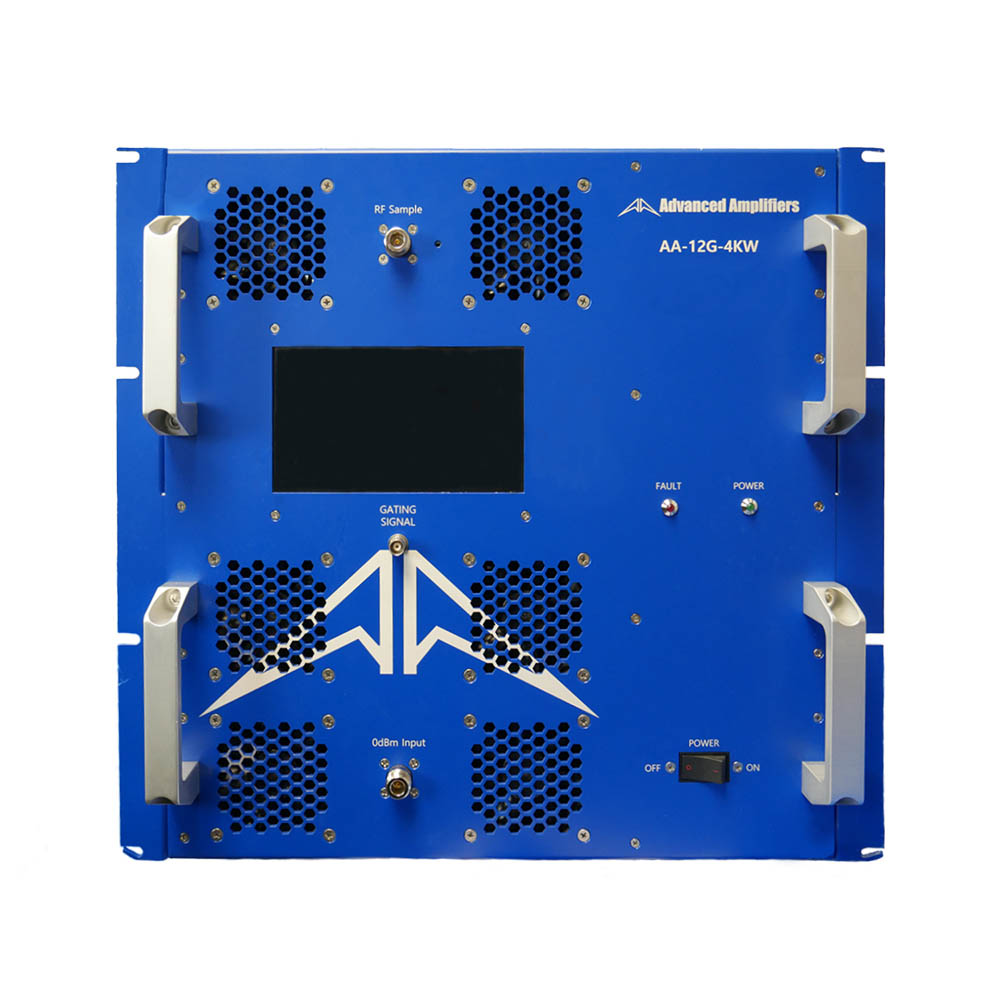

The AA-12G-4KWP is lightweight and has a low-profile build compared to standard amplifiers with the same specifications, allowing for easy transportation and more rack space for additional test systems. This unique amplifier offers high linearity and quick heat dissipation. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. The Advanced Amplifiers AA-12G-4KWP unit is housed in a striking cobalt-blue cabinet for benchtop applications and can be removed for rack mounting.

Complete with a rank mounted system, high power GaN devices, instantaneous bandwith, and built-in remote control, the AA-12G-4KWP is among the most efficient, durable, and dependable solid state amplifiers available.
