Advanced Amplifiers AA-48G-5KW-PT Pulsed TWT Amplifier | 4.0 - 8.0 GHz, 5 kW

Categories

Documents

Datasheet

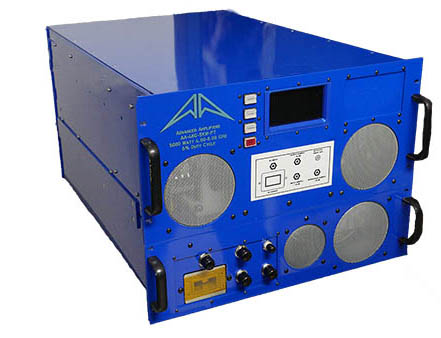

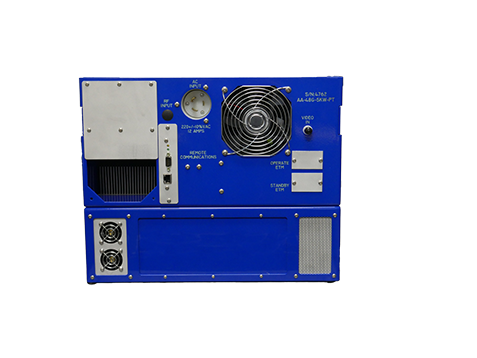

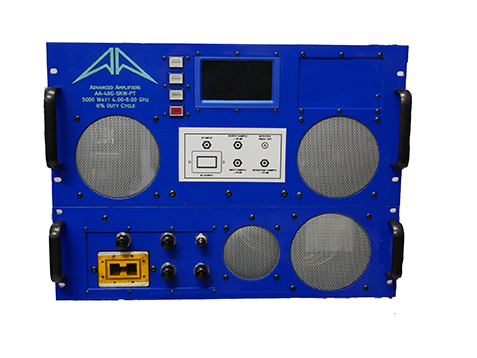

The Advanced Amplifiers AA-48G-5KW-PT Pulsed TWT Amplifier is a high-power pulse amplifier with a modern TWT design and advanced internal monitoring. The AA-48G-5KW-PT has a vast frequency range from 4.0 to 8.0 GHz and an output peak power of +67 dBm (minimum). The AA-48G-5KW-PT amplifier guarantees efficient and accurate testing capabilities, with an instantaneous G and H-band octave bandwidth, a versatile interface, built-in protection circuits for safety, durable design, and more. The Advanced Amplifiers AA-48G-5KW-PT Pulsed TWT Amplifier offers technicians a user-friendly testing experience.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

RF Specifications
Parameter	Specification	Notes
Frequency	4.0 - 8.0 GHz
Power Ripple	+/- 0.1 dB (maximum)
Output Peak Power	+67 dBm (minimum)
Load VSWR	2:1 (maximum)
Duty Cycle	6% (maximum)
Gain (for rated output)	67 dB (minimum)
Input Power (for Rated Output)	0 dBm (typical)
Spurious Output	0-250 Hz > 250 Hz	-55 dBc (minimum) -60 dBc (minimum)
Output VSWR Protection	100%
Gain Stability	0.25 dB/24 hours (typical)
RF Output Pulse Video Sample	+ 10 mv/kw into 50Ω
RF Output Power Sample	-40 dB
RF Interstage Power Sample	-20 dB
RF Input Power Sample	-20 dB

ELECTRICAL SPECIFICATIONS
Parameter	Specification	Notes
Primary Input Power Mains	220+/-10%/1p/60Hz
Primary Power Consumption	1.6 kVa (maximum)
Elapsed Time Meter	00,000.00 hours \| 100%
Modulation Input Pulse	+5v TTL
Digital Interface	Ethernet (LAN)/RS-232
