AH Systems SAS-521-2 Bilogical Antenna Hybrid Log Periodic

Rent AH Systems SAS-521-2 Bilogical Antenna Hybrid Log Periodic
Enlarge Image

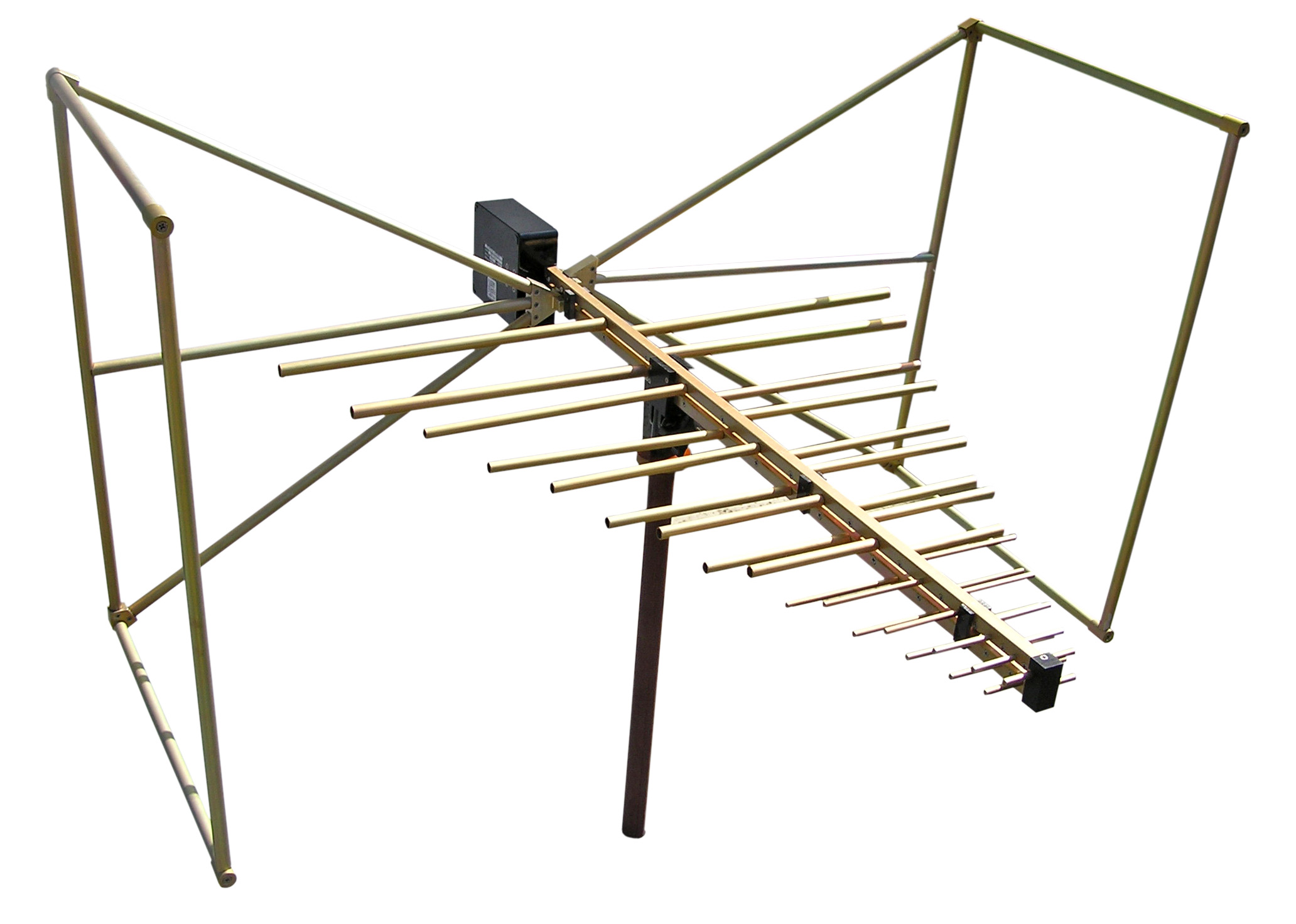

AH Systems SAS-521-2
Request Quote Print Page
Manual Specifications Accessory Kit

The AH Systems SAS-521-2 BiLogical Antenna provides an inexpensive solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 25 MHz to 2000 MHz.



Features:

  • Hybrid Log Periodic - Biconical Antenna
  • Wide Frequency Range of 25 MHz - 2000 MHz
  • Receive and Transmit
  • Individually Calibrated (1, 3 and 10 Meter calibration included, horizontal polarization)
  • FCC, MIL-STD, VDE and TEMPEST Testing
  • Rugged Construction



Specifications:

Frequency Range 25 MHz - 2000 MHz
Maximum Continuous Power 1000 Watts
Impedance 50 ohms
Max Radiated Field 300 V/m
Connector N-Type, female
Mounting Base 1/4 - 20 Thread, female
Height 22.2 in.
Width 38.5 in.
Length 37.3 in.
Weight 4.4 lbs.
