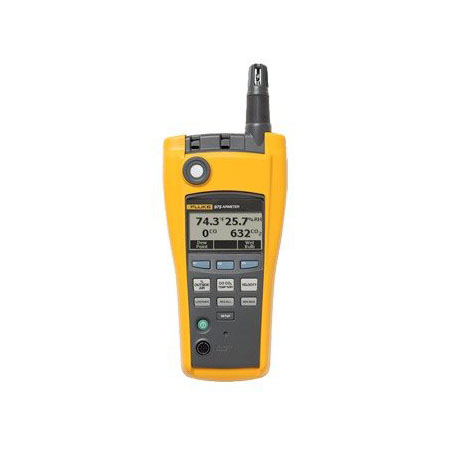

The Fluke 975 AirMeter test tool raises indoor air monitoring to the next level by combining five powerful tools in one, rugged and easy-to-use handheld device. Use the Fluke 975 to optimize HVAC ventilation settings for ASHRAE 62 recommendations, actively monitor conditions that promote a productive environment, and quickly and accurately address occupant comfort complaints the first time. The Fluke 975 AirMeter measures temperature, velocity, humidity, CO2, and CO.

Responding to comfort-related calls from occupants and determining whether adequate vantilation exists is simple with the Fluke 975. Use the AirMeter to test for dangerous carbon monoxide leaks and perform duct traversals. With the Fluke 975, users can efficiently verify and optimize the operation of building HVAC control systems to manage energy costs.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Simultaneously measures, logs, and displays temperature, humidity, CO2, and CO on a bright, backlit LCD display
Wet bulb and dew point temperature
% of outside air calculation
CO2 and CO field calibration feature
Auto-backlight
Automatically compensates for barometric pressure changes
Min/Max/Average on all measured and calculated readings
Multi-language user interface
Metric or standard units
Audible and visual threshold alarms
Extensive discrete or continuous data logging capacity, downloadable to PC via USB interface
Keypad lock for security
Included FlukeView Forms® software

Specifications

Measured Specifications
Temperature	Range	-20°C to 50°C (-5°F to 122°F)
	Display resolution	0.1°C (0.1°F)
	Accuracy	±0.9°C / ±1.62°F from 40°C to 60°C ±0.5°C / ±1.00°F from 5°C to 40°C ±1.1°C / ±1.98°F from -20°C to 5°C
Relative humidity	Range	10% to 90% RH, non-condensing
	Display resolution	1%
	Accuracy	±2% RH (10% RH to 90% RH)
Air velocity	Range	50.0 fpm to 3000 fpm 0.25 m/sec to 15 m/sec
	Display resolution	1 fpm (0.005 m/sec)
	Accuracy	±4% or 4 fpm¹ ±4% or 0.02 m/sec¹ whichever is greater
	Accuracy	1. Accuracy specification only valid for velocity readings above 50 fpm.
C0	Range	0 to 500 ppm
	Display resolution	1 ppm
	Accuracy	±5% or ±3 ppm, whichever is greater, @ 20°C and 50% RH
C0₂	Range	0 to 5000 ppm
	Display resolution	1 ppm
	Accuracy	Warm up time 1 min (5 minutes for full specification) 2.75% + 75 ppm
Calculated Specifications
Dew point temperature	Range	-44°C to 50°C, (-47°F to 122°F)
	Display resolution	0.1°C (0.1°F)
	Accuracy	±1°C when temp: -20°C to 50°C RH: 40% to 90% ±2°C when temp: -20°C to 50°C RH: 20% to 40% ±4°C when RH: 10% to 20%
Wet bulb temperature	Range	-16°C to 50°C, (3°F to 122°F)
	Display resolution	0.1°C, (0.1°F)
	Accuracy	±1.2°C when RH: 20% to 90% temp: -20°C to 60°C ±2.1°C when RH: 10% to 20%
Volume flow rate (in a duct)	Range	0 to 3,965 M3/m, (0 to 140,000 cfm)
	Display resolution	0.001 M3/min, (1 cfm)
	Accuracy	N/A: The volume flow calculation will be a simple average of the data points times the duct area
% outside air (based on temperature)	Range	0 to 100%
% outside air (based on temperature)	Display resolution	0.1
% outside air (based on CO₂)	Range	0 to 100%
% outside air (based on CO₂)	Display resolution	0.1% N/A
General Specifications
Operating and storage temperature	-20°C to 50°C (-4°F to 122°F)
Humidity	10% to 90% (non-condensing)
Altitude	Up to 2000 m (6562 ft)
Shock and vibration	MIL-PRF-28800F: Class 2
Multi-language interface	English, French, Spanish, Portuguese and German
Battery	Rechargeable Li-Ion (primary), three-AA (backup)
Data logging	25,000 records (continuous), 99 records (discrete)
Warranty	Two-years
