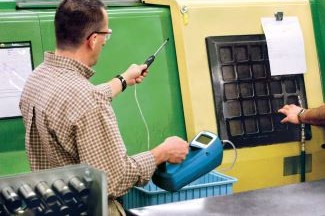

TSI P-Trak 8525 Ultrafine Particle Counter

Larger

Categories

Particle Counters

Documents

The TSI P-Trak 8525 Ultrafine Particle Counter is an ideal instrument for measuring workplace ultrafine particulate levels, as well as helping eliminate indoor air quality (IAQ) problems. The TSI P-Trak 8525 detects and counts ultrafine particles (smaller than 1 micrometer) that often accompany or signal the presence of a pollutant that is the root cause of complaints.

Ultrafine particles are defined as having a diameter less than 0.1 μm (or 100 nm). Engineered nanoparticles (nanomaterials) are a subset of ultrafine particles with dimensions from 1 to 100 nm. Nanomaterials are produced and used for industrial and high-tech applications, while ultrafine particles are the byproducts of combustion and other chemical reactions. Unfortunately, the occupational health risks associated with manufacturing and using nanomaterials are not clearly understood. As a result, a need has arisen to assess workplace conditions. Using TSI’s proven technology, the TSI P-Trak 8525 gives direct, real-time measurement of workplace ultrafine particulate levels.

The P-Trak also locates obvious pollutant sources such as boilers, furnaces, and vehicles, and it also detects the not-so-obvious sources such as photocopy machines and printers. Use this instrument to detect the migration of toxic exhaust gases, malfunctioning office equipment, pinhole gasket leaks in boilers and a wide variety of other problems.

Included Items:

Telescoping sample probe
Sample tube
Inlet screen
Spare wicks (2)
Battery holder
Alkaline batteries (6 AA)
Alcohol fill capsule with storage cap
Alcohol cartridge
30ml bottle Reagent Grade Isopropyl alcohol (16)
Zero filter (2)
Carrying case
TrakPro software
Computer cable
Operation and service manual
Calibration certificate
Two-year warranty

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Real-time ultrafine particle counter
Solves tough IAQ problems
Easy to use
Data log information

Specifications

Concentration Range
0 to 5 x 105 particles/cm3
Particle Size Range
0.02 to 1 micrometer
Temperature Range
Operation 32 to 100°F (0 to 38°C)
Storage -40 to 160°F (-40 to 70°C)
Flow Rate
Sample 100 cm3/min
Total 700 cm3/min (nominal)
Power Requirement
Battery type 6 AA alkaline
Battery life 6 hrs at 70°F (21°C)
Alcohol Requirement
Type 100% reagent grade isopropyl
Hours per charge 8 hours at 70°F (21°C)
RS232 Output
Baud rate 9600
Memory
Single points 470
Data logging 1,000 hours at one-minute intervals.
A maximum of 141 separate tests.1
Size (H x W x D)
10.75 in. x 5.5 in. x 5.5 in. (27 cm x 14 cm x 14 cm)
Weight
Instrument with batteries 3.8 lbs (1.7 kg)
Factory Recalibration Interval One year
Warranty
Two years on parts and labor2
Computer Requirements
PC with Microsoft Windows® 2000 or XP; Windows-compatible printer; 5 MB hard disk space; and available RS232 serial port (for downloading)
