Keithley 2461 SourceMeter Source Measure Unit (SMU)
Tech Support
(800) 404-2832
With Every
Rental
Worldwide
Delivery
Larger
Categories
Source Measure Units (SMU)
Documents
Datasheet
Print
Email
The Keithley 2461 SourceMeter Source Measure Unit (SMU) measures and analyzes high-power devices with incredible accuracy and an innovative design. The 2461 SourceMeter has a state-of-the-art user interface that features a capacitive touchscreen to make that simplifies the device for all users. The source measure unit (SMU) covers a wide range of voltages from 200 mV to 100 V, along with currents that stretch from 1 μA to 10A.
The Keithley 2461 SourceMeter SMU is also optimized for easy use, with dual 18-bit 1MS/s digitizers and various signal input connections on both the front and back of the device. Testing also becomes much easier with the 5-inch, high-resolution touchscreen, with an icon-based menu structure to reduce half the steps required in most tests. Along with a 0.012% DCV accuracy with a 6.5-digit resolution, the 2461 SMU balances efficient tests and precise results.
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features
Wide coverage up to 105V / 7A DC 100W, 100V / 10A Pulse 1000W max.
Dual 1MS/s digitizers for fast sampling measurements
Five-inch, high resolution capacitive touchscreen GUI
0.012% DCV accuracy with 6½-digit resolution
Source and sink (4-quadrant) operation
Four “Quickset” modes for fast setup and measurements
Context-sensitive help function

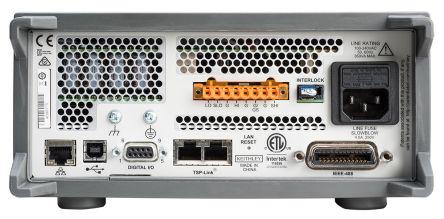

Front panel input banana jacks; rear panel mass termination screw connections
SCPI and Test Script Processor (TSP®) programming modes
Front-panel USB 2.0 memory I/O port for transferring data, test scripts, or test configurations
Specifications
General Specifications
Max Voltage
100V
Max DC Current
7A
Max Pulse Current
10A
DC / Pulse Power
100W / 1000W
Digitizers
Dual 18-bit 1MS/s
Wideband Noise
<4.5mVrms typical
Sweep Types
Linear
Log
Dual Linear
Dual Log
Custom
Reading Buffer Size
>2 Million Point Reading Buffer
Programming Command Type
SCPI Programming + TSP Scripting
PC Interface
GPIB
USB
Ethernet (LXI)
Signal Input Connections
Front: Banana Jacks
Rear: Mass Screw Terminal Connection
Applications
Options
Accessories
Standards
Media
RELATED PRODUCTS
Keithley 2400 SourceMeter Source Measure Unit (SMU)
Yokogawa GS820 Multi Channel Source Measure Unit
Keithley 2600B Series SourceMeter SMU Instruments
Keithley 6221 AC & DC Precision Current Source
Keithley 6487 Picoammeter Voltage Source
Keithley 6220 DC Current Source, 100fA to 100mA
Hypatia 308 High Current Sourcing Milliohm Meter
Keithley 237 High-Voltage Source Measure Unit
Hypatia 306 High Current Sourcing Milliohm Meter
Hypatia 309 Milliohms Meter
Keithley 238 High Current Source Measure Unit
Keithley 2410 Source Meter Unit
Keithley 2450 SourceMeter SMU Instruments
Keithley 2470 Graphical Sourcemeter (SMU)
Keithley 2636A Sourcemeter
Keithley 2657A High Power System SourceMeter
Keithley 6482 Dual-Channel Picoammeter/Voltage Source
Yokogawa GS200 DC Voltage/Current Source
Yokogawa GS610 Source Measure Unit
