Evident

Olympus DSX1000 Digital Microscope

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery
Olympus DSX1000 Larger
Olympus DSX1000 Digital Microscope
Olympus DSX1000 Digital Microscope
Categories
  • Digital Microscopes
    Digital Microscopes
Documents
  • Datasheet
  • Print
  • Email

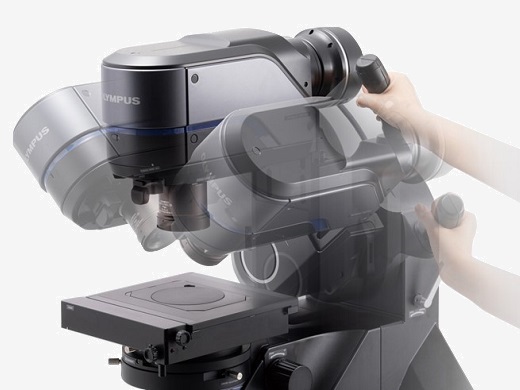

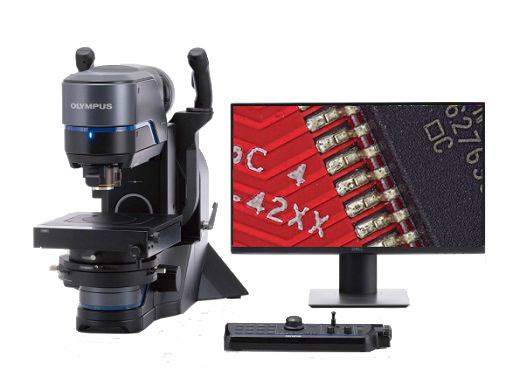

The Olympus DSX1000 Digital Microscope features a 20X to 7000X magnification range, tilt functionality, a motorized XY, and an advanced scan head. This all-in-one system with a wide magnification range is the most distinguishable advantage compared to a conventional digital microscope.

​The Olympus DSX1000 Industrial Digital Microscopes offer fast failure analysis with guaranteed accuracy and repeatability. The Olympus DSX100 also offers a large selection of lenses that are easy to change and install. With the 17 objective lenses, including super long working distance objective, high resolution, and high numerical aperture options, the Olympus DSX1000 provides the flexibility to obtain a wide range of images and high performance at the Nanoscale.

Depending on each testing suitability or requirement, users can switch between 6 different observation methods at the press of a button, perform a fast macro to micro viewing with 23X to 8220X magnification range, and take accurate measurements with a telecentric optical system.

On top of the extensive accessories and functions that Olympus DSX offers, Olympus Stream Software can achieve fast, efficient inspection workflows for image acquisition, quantitative measurements and image analysis, reporting, and advanced materials science inspection tasks. There are 4 different Olympus DSX1000 models, including entry, tilt, high resolution, and high end.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • All-in-one system with a wide magnification range
  • Large selection of lenses that are easy to change
  • Switch between 6 different observation methods by pushing a button
  • Fast macro to micro viewing
  • Accurate measurements with a telecentric optical system
  • Advanced measurements are fast and easy to obtain
Specifications
Zoom ratio 10X (motorized)
Maximum total magnification 7000X
Working distance 66.1 - 0.35 mm
Accuracy and repeatability Accuracy of magnification: 3%
Repeatability of magnification: ± 2% = 3σ n -1
Repeatability (Z-axis) Repeatability (height): σ n - 1 ≤ 1 μm
Frame rate 60 fps (maximum)
Image sensor 1 / 1.2 inch, 2.35 million pixel color CMOS
Focus Stroke: 101 mm (motorized)
Focusing: motorized
Applications
Options
Accessories
Standards
Media
