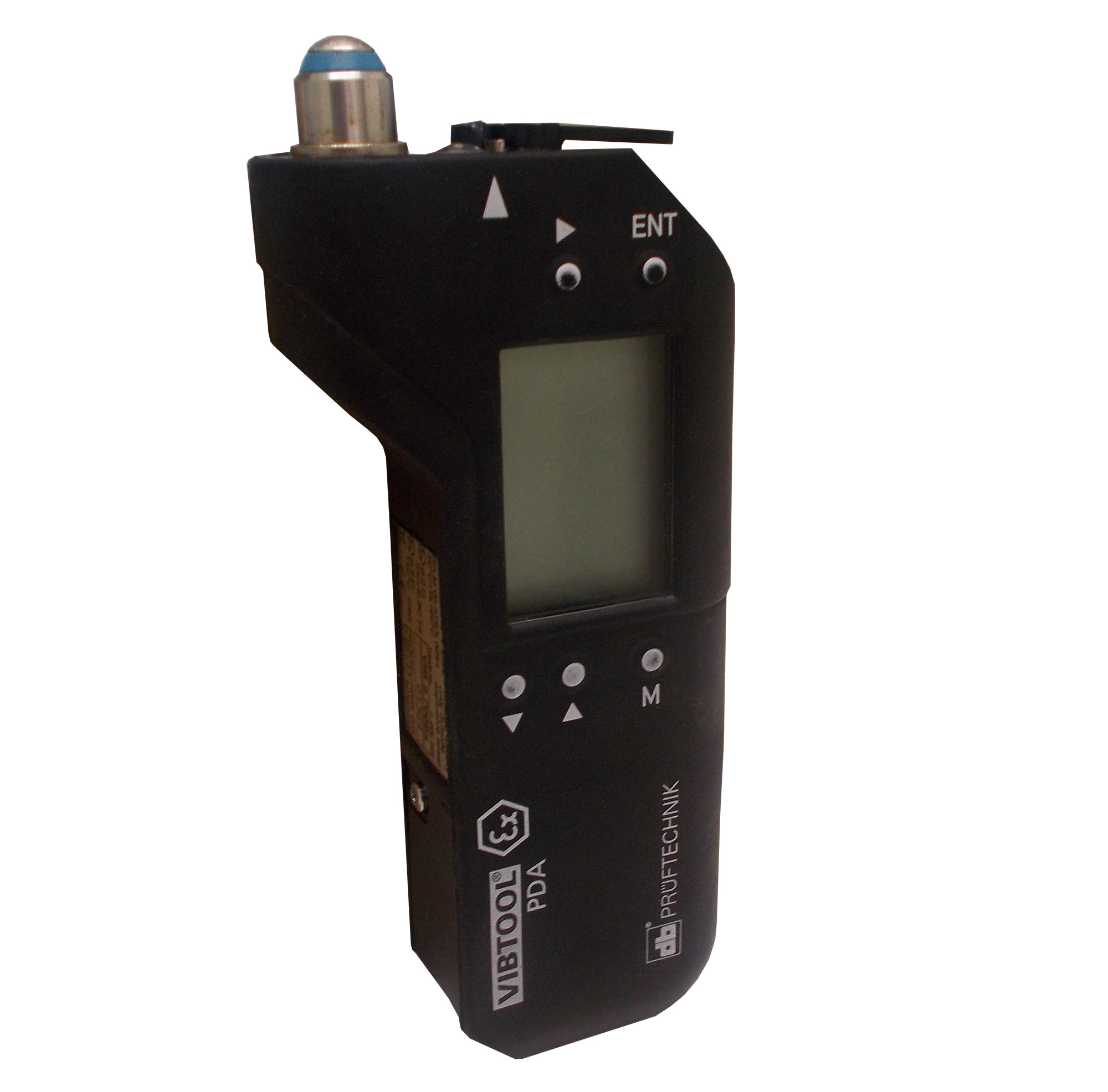

Pruftechnik VIB 2.700 EX
Request Quote Print Page
Manual Datasheet Accessory Kit
The Pruftechnik Vibtool VIB 2.700 EX PDA is a handy, multi-functional tool for recording the most important condition parameters of rotating machines: Vibration, bearing condition, temperature and RPM can be measured with the integrated sensors. These values can then be displayed on the LCD display, and transferred wirelessly via a Bluetooth interface to any commercially-available PDA* computer for evaluation and archiving. The PDA computer contains the corresponding application program which is separately available for programming the measurement tasks and for the administration of measurement locations in a database.


Specifications:

  • Vibration velocity: Sensor built in; external Tandem-Piezo® sensor available
    • Meas. quantity: RMS
    • Frequency range: 2/10Hz – 1/10kHz
    • Measurement range: 0 - 50 mm/s RMS (Max. value depends on sensor type and signal freq.)
    • Accuracy ± 5% (DIN 45662)
  • Vibration acceleration: Sensor built in; external Tandem-Piezo® sensor available
    • Meas. quantity: RMS
    • Frequency range: 2/10/500Hz – 1/10kHz ; 1kHz – 10kHz
    • Measurement range: 0 - 961 m/s² (98g) (Max. value depends on sensor type and signal freq.)
    • Accuracy: ± 5% (DIN 45662)
  • Bearing condition Sensor built in; external Tandem-Piezo® sensor available
    • Meas. quantity: dBSV, carpet value, maximum value
    • Measurement range: -9 - 80 dBsv
    • Accuracy: 3 dBsv
  • Tachometer: Sensor built in
    • Measurement range: 60 - 100000 rpm
    • Accuracy: 1 rpm / 0.1%
    • Max. distance: 0.2 m
  • Temperature: Sensor built in; ext. thermocouple available
    • Measurement range:
      • internal probe: -30° - 270° C (-22° - 518° F)
      • external probe: -50°C – 500°C (-22° - 932° F)
    • Units: °C, °F (selectable)
    • Accuracy: ± 3% / ± 1 digit
