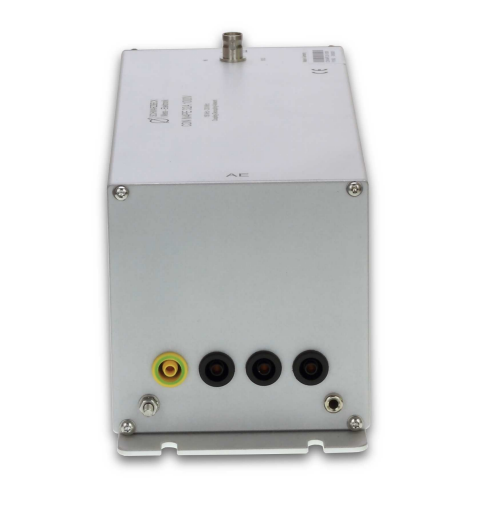

The Schwarzbeck CDN M4PE-32A-1000V Coupling Decoupling Network is a user-friendly device that is part of the company's Coupling Decoupling Network series. With a frequency range of 150 kHz to 230 MHz, an RF input power of 6 W (continuous), and more, the CDN M4PE-32A-1000V is the ideal coupling decoupling network for reliable immunity testing. The Schwarzbeck CDN M4PE-32A-1000V Coupling Decoupling Network is also compliant to the IEC 61000-4-6 standard.
Features
- Intended to inject common mode disturbance signals to power supply or mains lines
- Frequency range of 150 kHz to 230 MHz
- Complies with the requirements of IEC 61000-4-6
- Suitable for immunity testing on unscreened AC and DC power supply lines
Specifications
| Dimensions |
216 x 105 x 108 mm |
| Weight |
5.5 lb.
2.5 kg |
| Frequency range |
150 kHz - 230 MHz |
| Common mode impedance |
150 kHz – 24 MHz: 150 Ω ±20 Ω
24 MHz–80 MHz: 150 Ω +60 Ω/-45 Ω
80 MHz–230 MHz: 150 Ω ±60 Ω |
| Max. RF-test voltage (EMF) |
30 V |
| RF input power |
6 W (continuous) |
| RF input connector |
50 Ω BNC (female) |
| Voltage division factor RF input (EuT-port) |
9.5 dB
150 kHz – 80 MHz: ± 1dB
80 MHz – 230 MHz: +3 dB / -2 dB |
Input voltage EuT (AE):
(Line to ground / line to line) |
500 VAC / 1000 VDC
1000 VAC / 2000 VDC |
| EuT, AE connectors |
4 mm safety banana female |
