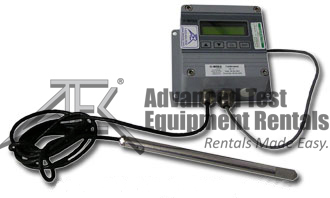

Vaisala HMP235 HUMICAP Humidity & Temperature Transmitter

Larger

SKU: VAIS-HMP235

Item Discontinued

Click here for replacement model

The microprocessor-based Vaisala HMP235 HUMICAP Humidity & Temperature Transmitter is a versatile, easy to use transmitter. The Vaisala HMP235 is useful for demanding industrial and air conditioning applications. The transmitter measures relative humidity and temperature. It also outputs dewpoint and wet bulb temperature, mixing ratio and absolute humidity as calculated variables. The Vaisala HMP235 transmitter can be configured to the customer's requirements on the production line, but configuration and parameters can also be set by the user. Both analog and serial outputs are available as well as several options: different cable lengths, power supply modules, serial interface modules and a local display.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Measurement Range:	0 - 100 %RH
Accuracy Against Salt Solutions:	±2 %RH (0...90 %RH); ±3 %RH (90...100 %RH)
Max Accuracy Against High Quality Certified Standards:	±1 %RH (0...90 %RH); ±2 %RH (90...100 %RH)
Operating Temperature:	-40...+180 °C (-40...+356 °F)

Options
Calculation variables:	dewpoint temperature, mixing ratio, absolute humidity, wet bulb temperature, enthalpy
Power supply:	24 VDC (standard), (for 24 VAC, see page 23) 115/230 VAC
Serial interface:	RS 232C (standard), RS 485/422, current loop
Display cover:	cover with or without local display & keypad
Filters:	sintered filter, PPS grid with steel netting, PPS grid
Cable length:	2, 5, or 10 meters
Alarm output unit:	Not with 115/230 VAC power supply and not with HMP231
Cable connectors:	For 24 VDC supply, for analogue outputs, for RS 232C line and for RS 485 single loop line; see Appendix 8 for details
Installation aids:	HMP233: installation kits for +80 °C and +120 °C cables HMP234: NPT conical pipe threaded fitting body (1/2 - 14 NPT) HMP235: steel and aluminium flanges HMP237, installation kit for duct mounting HMP238: ball valve set
