ARA PLA-130/A Untuned Loop Antenna 1 kHz - 30 MHz

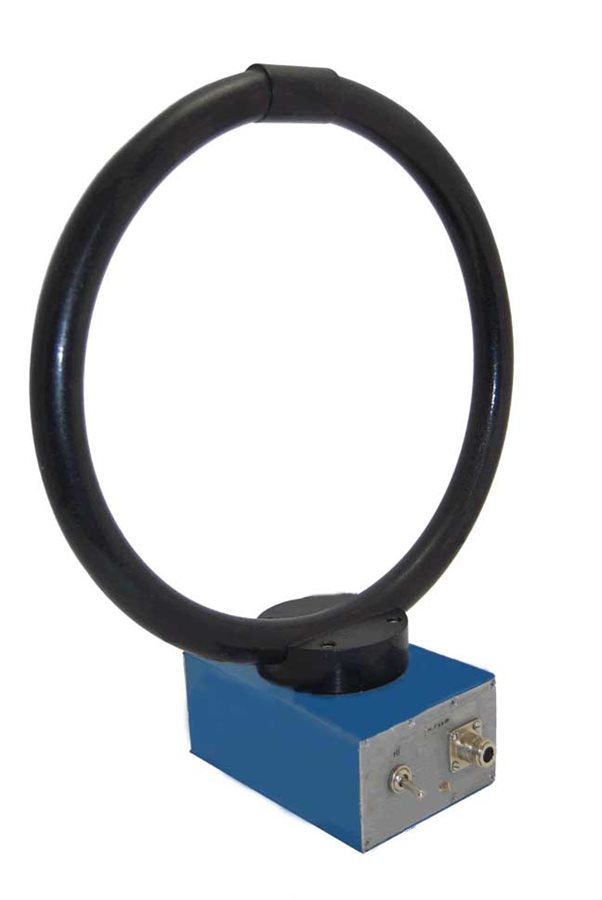

ARA PLA-130/A Loop Antenna
Enlarge Image
ARA PLA-130/A Loop Antenna ARA PLA-130/A Loop Antenna ARA PLA-130/A Loop Antenna
ARA Technologies PLA-130/A
Request Quote Print Page
Datasheet
The Antenna Research line of untuned loops includes both active and passive antennas to meet a wide range of testing requirements. PLA-130 is designed for the shield room testing requirements of MIL-STD 285 and NSA 65-6. The PLA-130/A is capable of handling 1 kW input power.

ARA Technologies PLA-130/A Specs
Frequency Range 1 kHz - 30 MHz
Input Power 1 kW
Impedance 50 ohms
Size Loop: 12" diameter
Base: 6"x 4"
Connector N Female
Type Passive
