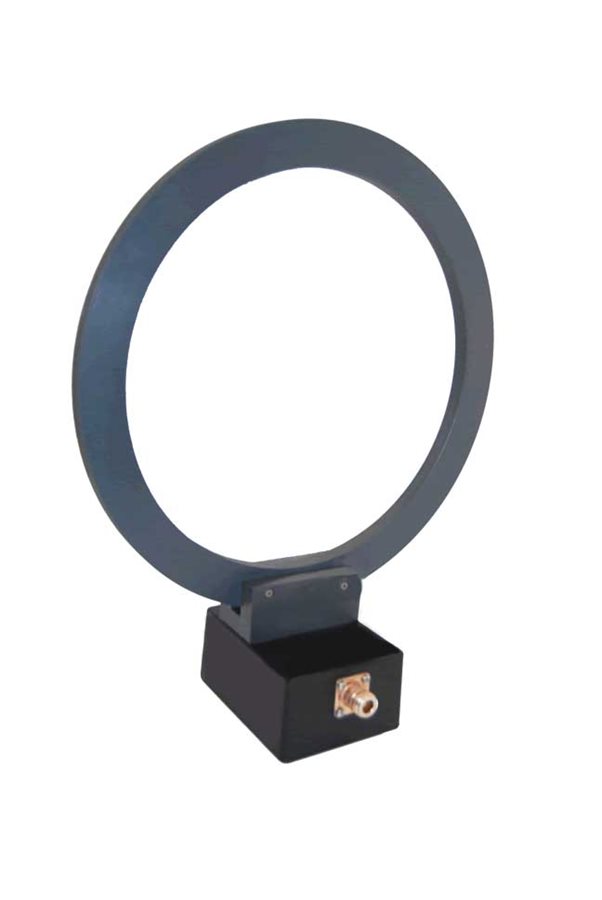

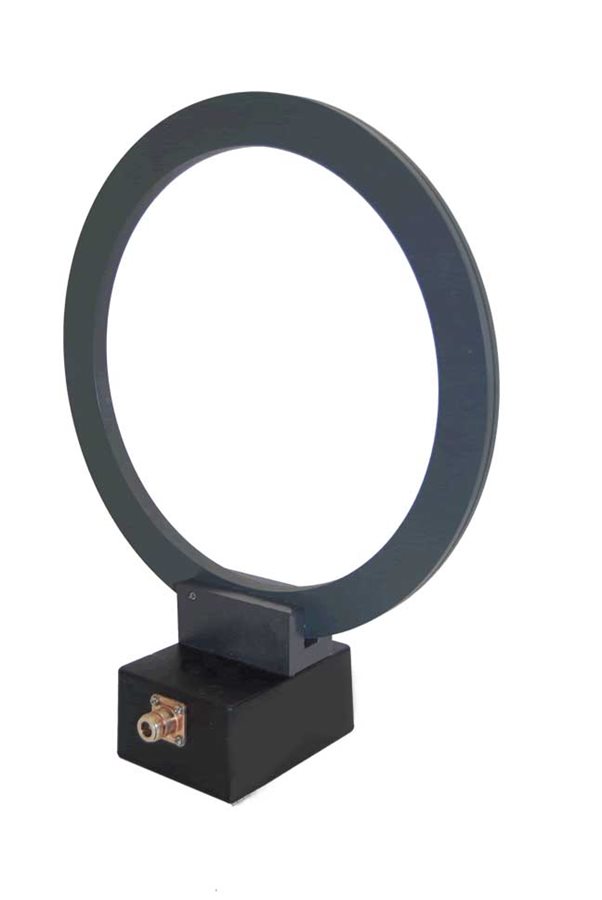

AH Systems SAS-564 12 Inch Transmit Loop 1k Hz - 30 MHz

Rent AH Systems SAS-564 12 Inch Transmit Loop 1k Hz - 30 MHz
Enlarge Image
Rent AH Systems SAS-564 12 Inch Transmit Loop 1k Hz - 30 MHz Rent AH Systems SAS-564 12 Inch Transmit Loop 1k Hz - 30 MHz Rent AH Systems SAS-564 12 Inch Transmit Loop 1k Hz - 30 MHz
Request Quote Print Page
Specifications

Features:

  • Frequency Range 1k Hz - 30 MHz
  • Broad Frequency Range of 1 kHz to 30 MHz
  • Radiated
  • FCC, MIL-STD, VDE and TEMPEST Testing
  • Rugged Construction



Specifications:

Frequency Antenna Factor (dB/m)
1 kHz 112.9
2 kHz 108.8
5 kHz 100.4

10 kHz 94.8
20 kHz 88.5
50 kHz 80.2

100 kHz 74.9
200 kHz 69.1
500 kHz 62.0

1 MHz 56.3
2 MHz 51.0
5 MHz 44.0

10 MHz 37.9
20 MHz 31.7
50 MHz 28.7
