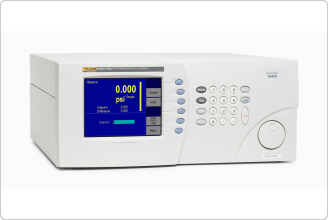

Fluke 7250LP Low Pressure Calibrator

  Tech Support
(800) 404-2832
ATEC Assurance With Every
The Fluke 7250LP Low Pressure Calibrator is designed to achieve performance requirements of calibrating low pressure sensors, transducers, mechanical gauges, portable calibrators and their plug-in modules. Users can select from three different range configurations: 2.5/7.5 kPa (10/30 inH2O),  5/15 kPa (20/60 inH2O) or 10/25 kPa (35/100 inH2O). Fluke Calibration 7250Lp models provide a precision to 0.005% of reading from 10 to 100% of the higher range. The 7250LP calibrator uses a specific quartz pressure sensing technology to offer remarkable accuracy and eliminate mechanical linkages.

The 7250LP also provides two user selectable control modes; active and passive. In active mode, the 7250LP is continually maintaining the set point and can compensate for small leaks and pressure changes due to temperature. In passive mode, the user defines a control band and the 7250LP will turn off the controller once it achieves the setpoint within the control band.
