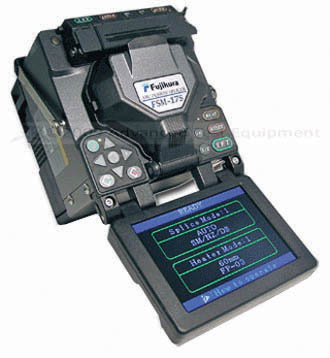

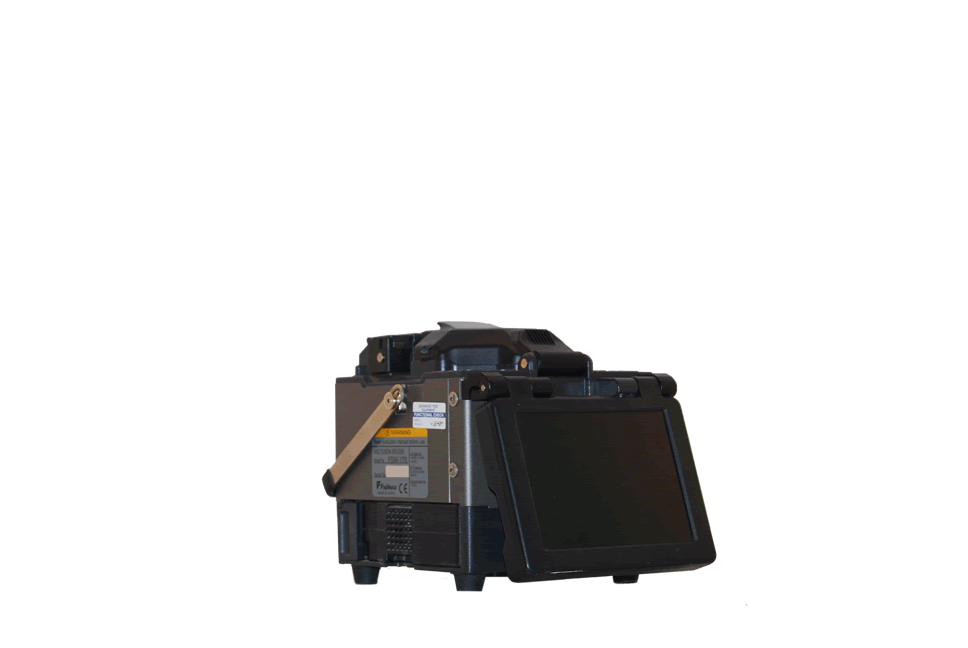

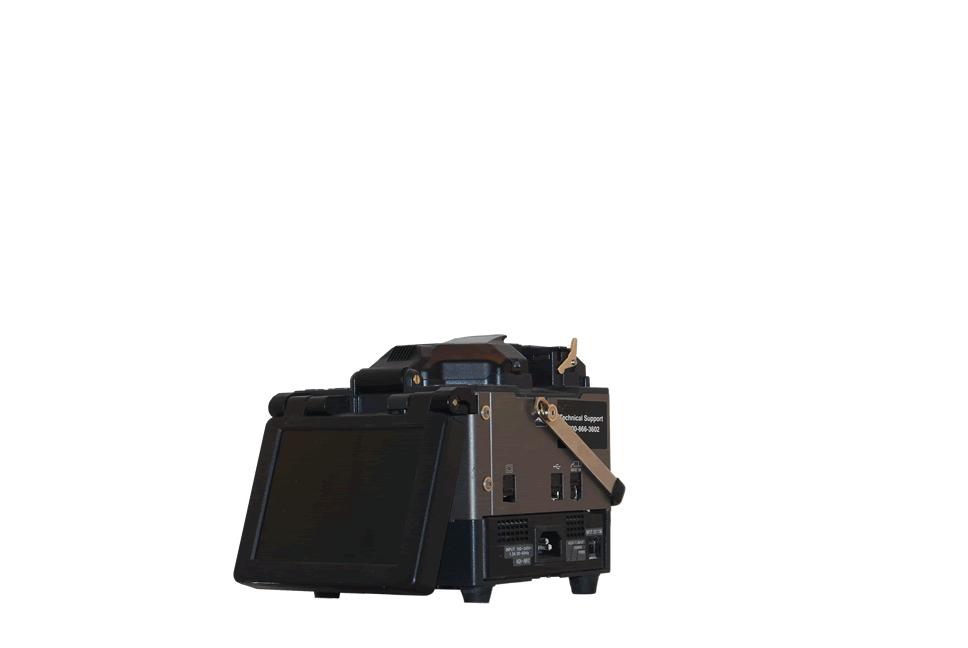

Fujikura FSM-17S Single Fiber Fusion Splicer

Fujikura FSM-17S Single Fiber Fusion Splicer
Enlarge Image
Fujikura FSM-17S Single Fiber Fusion Splicer Fujikura FSM-17S Single Fiber Fusion Splicer Fujikura FSM-17S Single Fiber Fusion Splicer
Request Quote Print Page
Datasheet

Features:

  • Suitable for single fiber splicing
  • Cladding alignment with fixed V-groove
  • Dual-directional operating system
  • Arc calibration-free system
  • Large capacity slot-in battery
  • Simple operation steps


Specifications:

Applicable fibers SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU -T G.653), NZDS (ITU-T G.655)
Fiber Count Single
Cladding diameter 125μm
Coating diameter 250μm to 1000μm
Fiber cleaved length 8 mm to 16 mm with coating diameter of 250µm or less
16 mm with coating diameter of 250µm to 1000µm
Optional set-plate for 8 to 16mm with coating diameter of 250µm to 1000µm is available
Actual average splice loss 0.05 dB with SM
0.02 dB with MM
0.08 dB with DS
0.08 dB with NZDS
Measured by cut-back method relevant to ITU-T and IEC standards
Splicing time Typical 11 seconds with standard SM fiber
Return loss >60 dB
Splicing modes 40 user programmable modes and up to 60 modes for reference (factory predetermined setting)
Splice loss estimate Available
