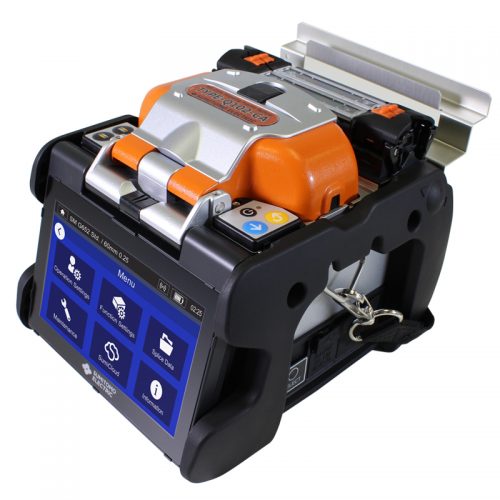

Sumitomo Quantum Type Q102-CA Fusion Splicer

The Sumitomo Quantum Type Q102-CA Fusion Splicer is a quantum core alignment fusion splicing instrument featuring a 5 second splice time, 9 second heating time and dual independent ovens. The dual heating system improves splicing efficiency by over 80%, streamlining consecutive splicing and rendering the process more cost effective. Sumitomo Quantum Type Q102-CA models are operated through a smart phone interface featuring a WVGA high resolution touchscreen monitor that is fully navigational. Actively pan and zoom over data or inspect minute areas of a fiber by simply pinching, dragging or expanding with your fingers. The Sumitomo Quantum Type Q102-CA is water, dust and shock resistant, both rugged and reliable under extreme conditions in any environment, and lasts for 300 splice and heater cycles per charge.

Features
Specifications
Applications
Options
Accessories
Standards
Videos

Features

5 second splice time, 9 second heaters
Per charge, 300 splice/heater cycles
Accessible smart phone interface
Built with dual, independent heat-shrinking ovens
Navigational WVGA, high resolution touch screen display
LED wide angle lighting
Resistant to dust, shock, water
Splice automatically starts, auto arc calibration
Battery recharges while splicing
Electrodes up to 6,000 arcs for long life
Features Lynx2 CustomFit® splice-on connector

Specifications

Size (mm)	128W x 154D x 130H
Weight	2.2kg with BU-16 Battery
Display Type	5 inch Color, Low Glare, High Resolution Touch Screen Monitor
Shock–Free Fall	76cm from 5 sides
Waterproof	IPx2
Dustproof	IP5x
Battery Docking Bay	Internal

Applications

Options

Accessories

Type-Q102-CA-KIT-1 Components:
- Type-Q102-CA Splicer
- Hard Transit Case
- Work Platform
- Standard Battery
- Cleaning Tools
- Fiber Protection Sleeve Cooling Tray
- Manual
- Fiber Optic Stripper
- AC Adapter

Standards

Media

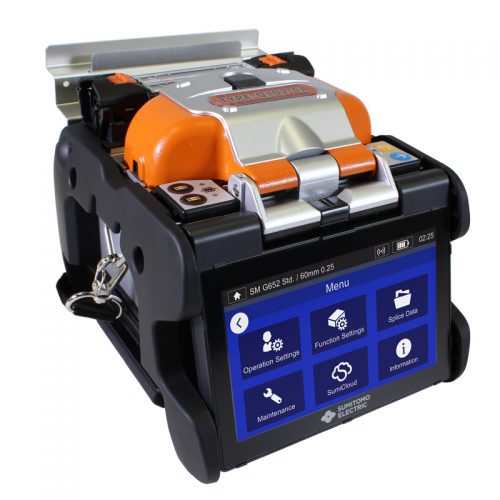

Sumitomo Quantum Type Q102-CA Fusion Splicer
