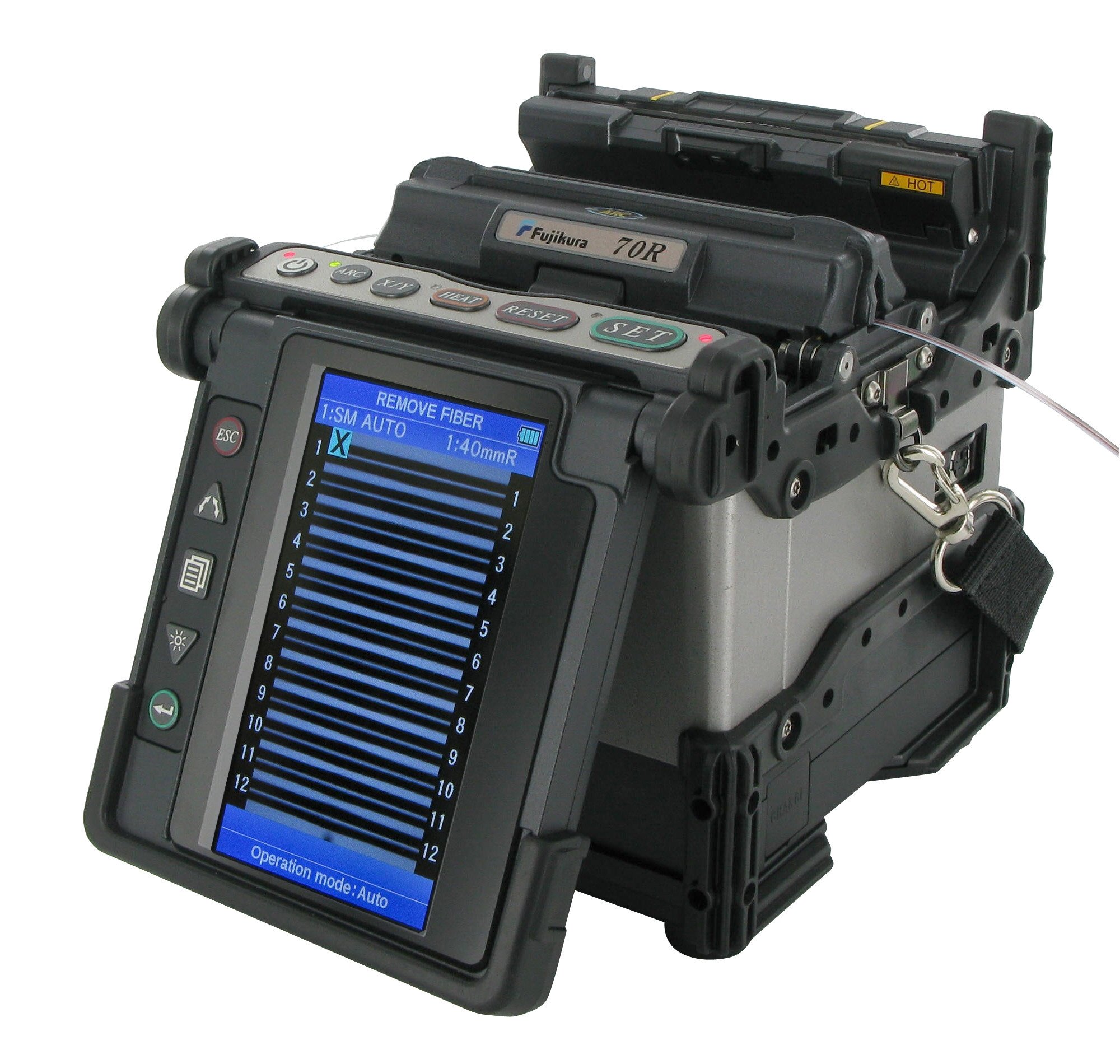

The Fujikura 70R is a fully robust fusion splicer for ribbon optical fiber. The new design streamlines the steps required to complete splices, resulting in greater productivity. The 'configurable automation' features allow you to customize the operation of the machine to best suit your particular splicing technique and process. A new programmable 'automatic wind protector' closes and begins the splicing process after clamping the fibers in position or pressing the 'set' button. Once the splice is completed the wind protector is automatically opened making removal of the fibers fast and easy! Similarly, the 'clamshell' design of the tube heater clamps the splice protection sleeve and applies heat from both sides which results in a reduced shrink time of just 40 seconds.

Applicable Fibers	Single-mode (G.652 & G.657), Multimode (G.651), DS (G.653), NZDS (G.655)
Fiber Count	Single, 2, 4, 5, 6, 8, 10, 12
Cladding Diameter	125 µm
Coating Diameter	Ribbon: 0.25 mm to 0.4 mm, Single: 250 µm and 900 µm
Fiber Cleave Length	10 mm
