HP Agilent 54701A Active Probes

HP/Agilent 54701A Probe Adapter
Enlarge Image

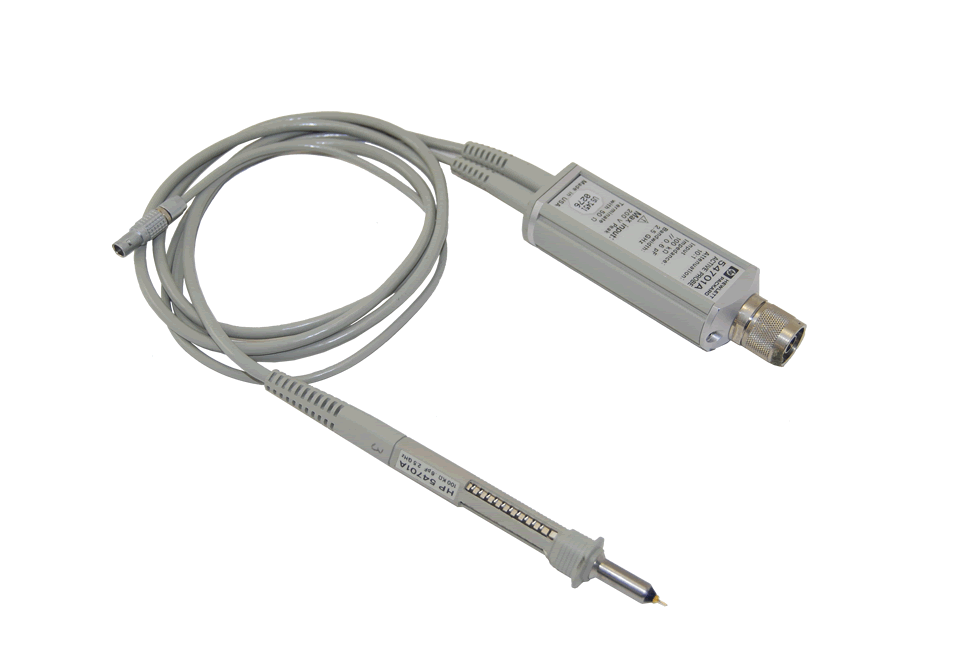

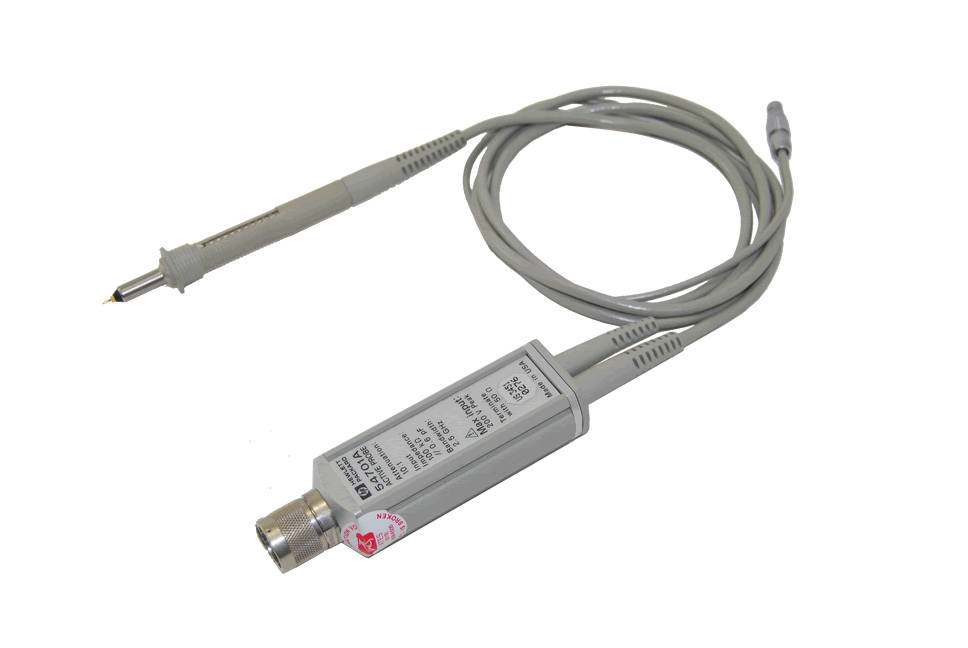

HP/Agilent 54701A Probe Adapter HP/Agilent 54701A Probe Adapter HP/Agilent 54701A Probe Adapter
Request Quote Print Page
Manual

The HP / Agilent 1143A probe offset and power module is required to provide power for the  HP / Agilent 54701A probe unless the 54701A is used with a HP / Agilent 54700 series scopes.



Specifications:

  • Attenuation Factor - 10:1
  • Bandwidth (-3dB) - > 2.5 GHz
  • Input Resistance -  100 k ohms
  • Rise Time -  < 140 ps
  • Input Capacitance -  0.6 pF (typical)
  • Maximum Input Voltage -  ±  200 V [dc + peak ac (< 20 MHz)]
  • ESD Tolerance  (150 ohms/150 pF) -   ± 12 kV
  • Dynamic Range -  ± 5 V peak ac and ± 50 Vdc
  • Offset Adjustment Range -  ± 50 V



Accessories Included:

  • Type N(f) to BNC(m) adapter
  • "walking-stick" ground
  • Box of small accessories
  • Carrying case
  • User Guide
