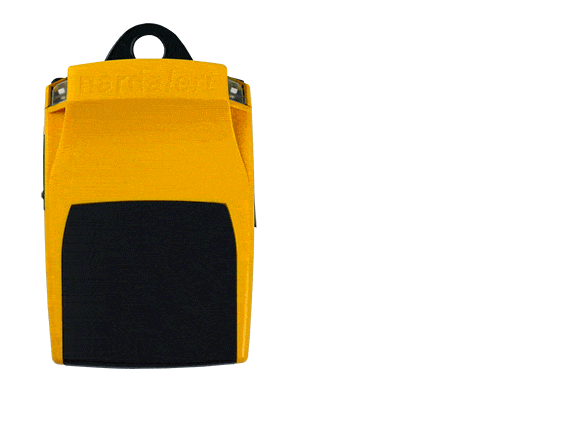

The Narda Nardalert S3 FCC Sensor is designed to be FCC 1997 occupational/controlled/Japan and RCR STD-38 controlled. Narda Nardalert S3 FCC sensors are personal radiation monitors for electric fields with on site interchangeable sensor modules. The Narda Nardalert S3 FCC is worn on the body and gives visible, audible and vibratory warning when the electric field power density approaches or exceeds the permitted limit. The warning thresholds are user-set. Different sensor modules that can be exchanged on site are available for various human safety standards. Any calibration of the sensor alone should be shipped separate from the unit. Refer to the picture for instructions on removing the sensor from the mainframe.

The Narda Nardalert S3 FCC Sensor 2271/01 is compatible with the S3 Non-Ionizing Radiation Monitor Mainframe.

Frequency range	100 kHz to 100 GHz
Weight	230 g
Dimensions	117 x 82.6 x 31.8 mm
