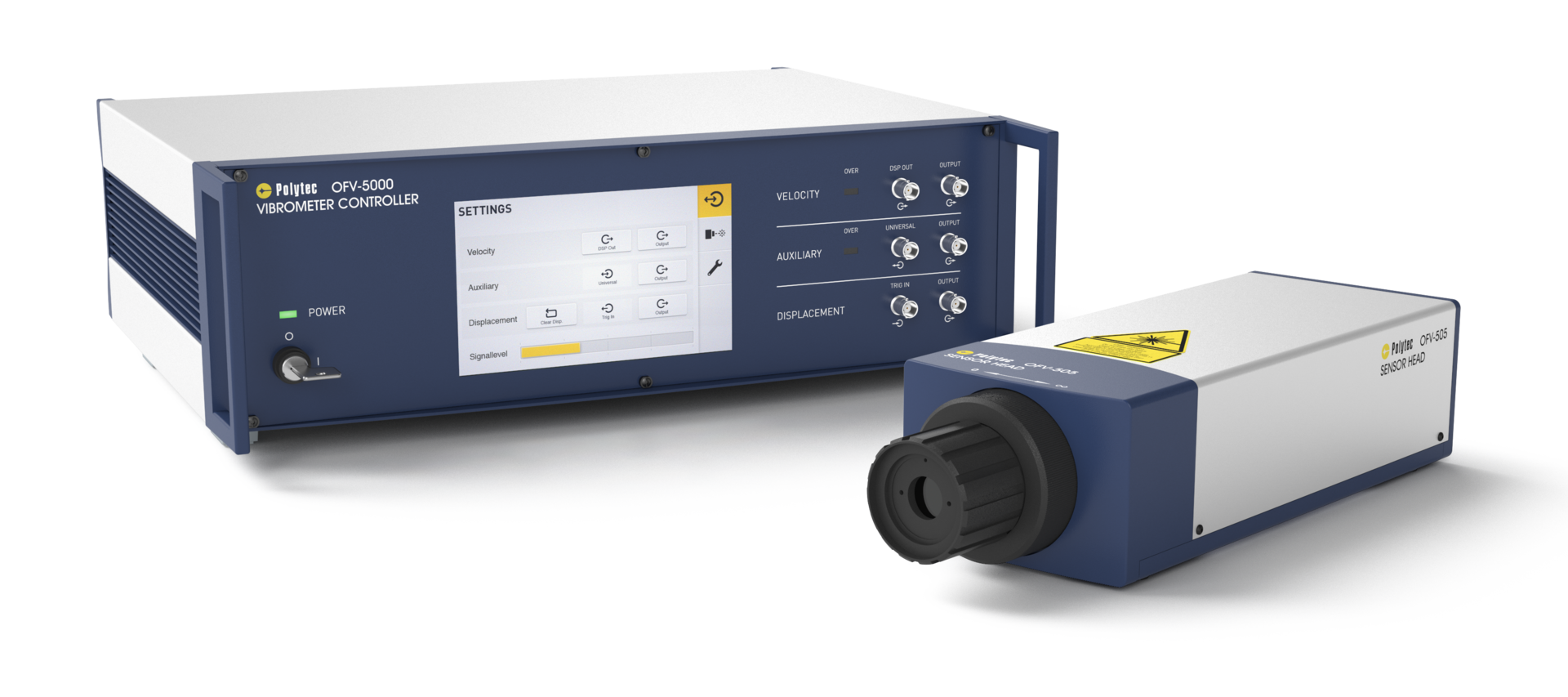

The Polytec OFV-5000 Modular Vibrometer is a 0.2-2m non-contact laser doppler vibrometer with a frequency range of DC - 24 MHz that includes a customizable laser turn head and customizable compact sensor head. The Polytec OFV-5000 allows you to choose from different sensor heads to best suit your specific measuring task and configure the decoders regarding the required vibrational displacement, velocities and acceleration. Both analog and digital decoders are available, giving a frequency range from near DC to 24 MHz with velocities up to ±10 m/s and displacements from the picometer to meter range.
Option for DAQ up to 1MHz available.
| Sensor Head |
Stand-Off Distance |
Features |
| OFV-505 |
100mm-300m |
Standard sensor head with multiple lenses |
| OFV-534 |
0.2-2m |
Fiber optic dual lens |
| OFV-552 |
55mm-1m |
Microscope sensor head for magnification analysis |
Features
- Measure displacement and velocity in real-time
- High resolution and bandwidth
- Flexible and expandable with several sensor heads and decoders
- Simple and comfortable operation with touchscreen and remote control
- Non-contact vibration measurement can be put to versatile use thanks to the modular approach
- Flexibility due to five small, lightweight sensor heads that can be changed quickly
- Different decoder combinations possible
- Frequency bandwidths: DC to 24 MHz
- Vibrational velocities up to ±25 m/s
- Displacement resolutions down to 0.1 pm
- All the sensor heads have a variable stand-off distance
- Laser spot in the μm range for highly precise measurement
- Simple alignment due to the visible spot
- Eye-safe class 2 laser
Specifications
| Metrological Specifications |
| Analog signal outputs |
BNC, ±10 V
Velocity signal
Displacement signal
AUX output
DSP output (velocity with DSP filter) |
| Digital signal output |
S/P-DIF standard 24 bit 48/96 kSa/s |
| Frequency range |
DC to 24 MHz |
| Max. velocity |
±10 m/s |
| Filters |
High pass filter: 100 Hz, off
Low pass filter: 5 kHz, 20 kHz, 100 kHz, off |
| Tracking filter |
3 settings: slow, fast, off |
| Adaptive filter module LF-02 |
DSP based: suppresses statistic noise, analog and digital signal output, frequency range 0 ... 20 kHz (optional for decoder VD-06) |
| Signal level |
Bargraph on touchscreen
Output as DC voltage signal (BNC, 0 ... 5 V) |
| PC-Interface |
RS-232, Remote control of the instrument settings |
| General Specifications |
| Interface/Display |
7" color touchscreen with interactive menu guidance |
| Dimensions |
19" rack mounting, W x D x H: 450 x 360 x 150 mm (19", 84 HP/3U) without angle brackets |
| Weight |
10 kg |
| Protection class |
IP20 |
| Operating temperature |
+5 °C … +40 °C (41 °F ... 104 °F) |
| Storage temperature |
-10 °C … +65 °C (14 °F ... 149 °F) |
| Relative humidity |
max. 80%, non-condensing |
| Power supply |
100...240 VAC ±10%, 50/60 Hz |
| Power consumption |
max. 100 VA |
