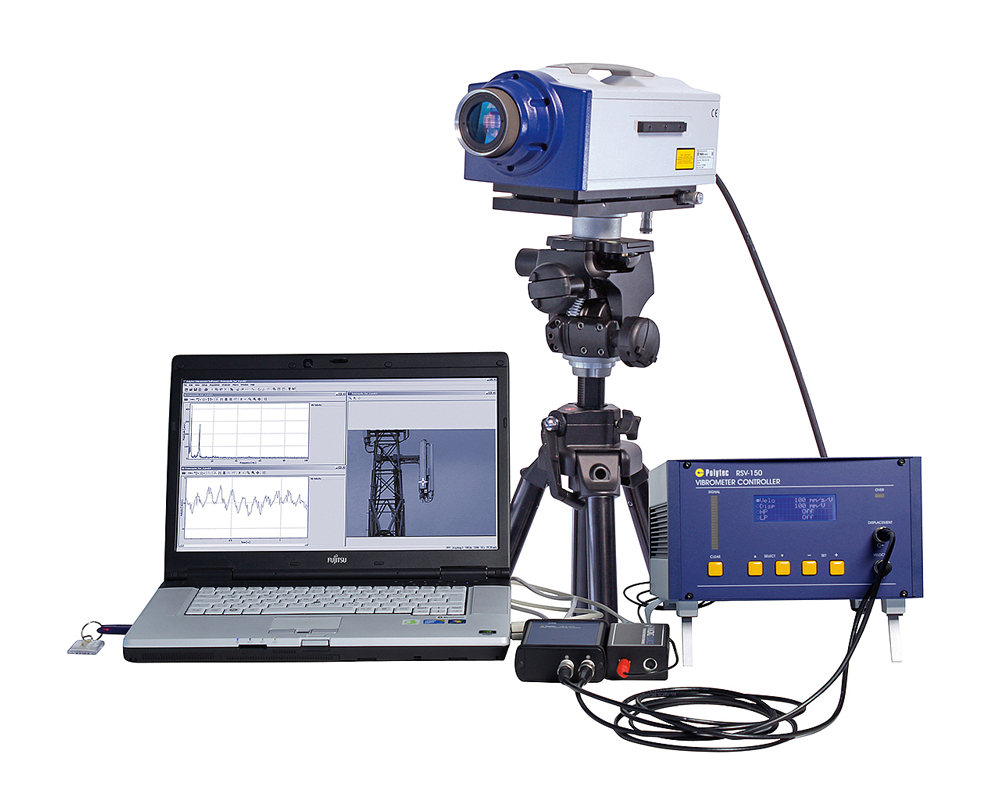

The Polytec RSV-150 Remote Sensing Vibrometer is a point-and-shoot laser doppler vibrometer with a measurement range of up to 300m, a 1µm resolution and a 2MHz bandwidth. Polytec RSV-150 vibrometers detect vibration, resonance frequencies and displacement on distant buildings, machine parts and other structures and eliminate time consuming contact sensor installation. This makes the RSV-150 an ideal tool for the cost-effective monitoring of the structural health or dynamic behavior of bridges, buildings and industrial plants.
Features
- Measuring distance up to more than 300 m
- Coaxial camera for simple aiming
- Displacement resolution of less than 1 µm to record the smallest vibrations and movements
- Eye-safe; no need for cordoning-off measures or laser safety officers
- Simple set-up in minutes for fast measuring results, without the laborious process of installing sensors at the measuring location
- Bandwidth of up to 2 MHz (20 MHz upon request) – for applications in the field of non-destructive materials testing
- High speed up to a velocity of 24 m/s for drop and shock tests
Specifications
| General Specifications |
| Laser |
Dual Class 2 laser source |
| Targeting |
Visual targeting with green laser spot and additional reticle overlay in telescopic camera image
Coarse adjustment with geared tripod head (pan/tilt)
Fine adjustment with adapter plate (±1° tilt, ±1.5° pan), repeatability approx. 5 mm @ 100 m |
| Operating Temperature |
+5 °C … +40 °C (41 °F … 104 °F) |
| Total weight |
Approx. 30 kg (including storage case, excluding tripod) |
| RSV-I-150 Sensor Head |
Short range lens |
Long range lens |
| Optics |
Manual focusing, min. stand-off distance 1 m, max. stand-off distance 4 m |
Manual focusing, min. stand-off distance 5 m, max. stand-off distance >300 m |
| Spatial resolution |
Laser spot 135 µm @ 1 m, depth of field 9 mm @ 1 m |
Laser spot 7.5 mm @ 100 m, depth of field 28.7 m @ 100 m |
| Signal level |
LED bar indicator; indicates return signal strength |
| Laser emission |
Emission indicator LED on backplate |
| Camera |
PAL CCD color camera, 765 x 582 pixels |
| Size L x W x H |
402 mm x 165 mm x 145 mm incl. lens |
| Operating temperature |
+5 °C … +40 °C (41 °F … 104 °F) |
| Weight |
~8 kg (9.8 kg incl. fine adjustment adapter) |
| Protection class |
IP63 (dust and spray protection) |
| Mechanical interfaces |
1/4“ – 20 UNC thread for tripod, 2 x M6 threaded holes at baseplate
(3/8“ – 16 UNC thread for tripod, if fine adjustment adapter is mounted)
10-32 UNF-2B standard thread for accelerometer (back) |
Standards
| Laser safety |
IEC/EN 60825-1 (Safety of Laser Products, complies to US 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice no. 50, dated 24 June 2007) |
| Electrical safety |
IEC/EN 61010-1 (Safety requirements for electrical equipment for measurement, control, and laboratory use) |
| EMC |
IEC/EN 61326-1 (EMC requirements on Emission and Immunity – Electrical equipment for measurement, control, and laboratory use). Emission: Limit Class A, IEC/EN 61000-3-2 and 61000-3-3. Immunity: IEC/EN 61000-4-2 to 61000-4-6 and IEC/EN 61000-4-11 |
